MAINTENANCE
88 eng
Tube
Ref No.
Description Where Used Part No.
95
2-4-C with
PTFE
Alternator belt tensioner pivot
shaft, swivel bracket, tilt
support lever, tilt tube, steering
cable
92-802859A 1

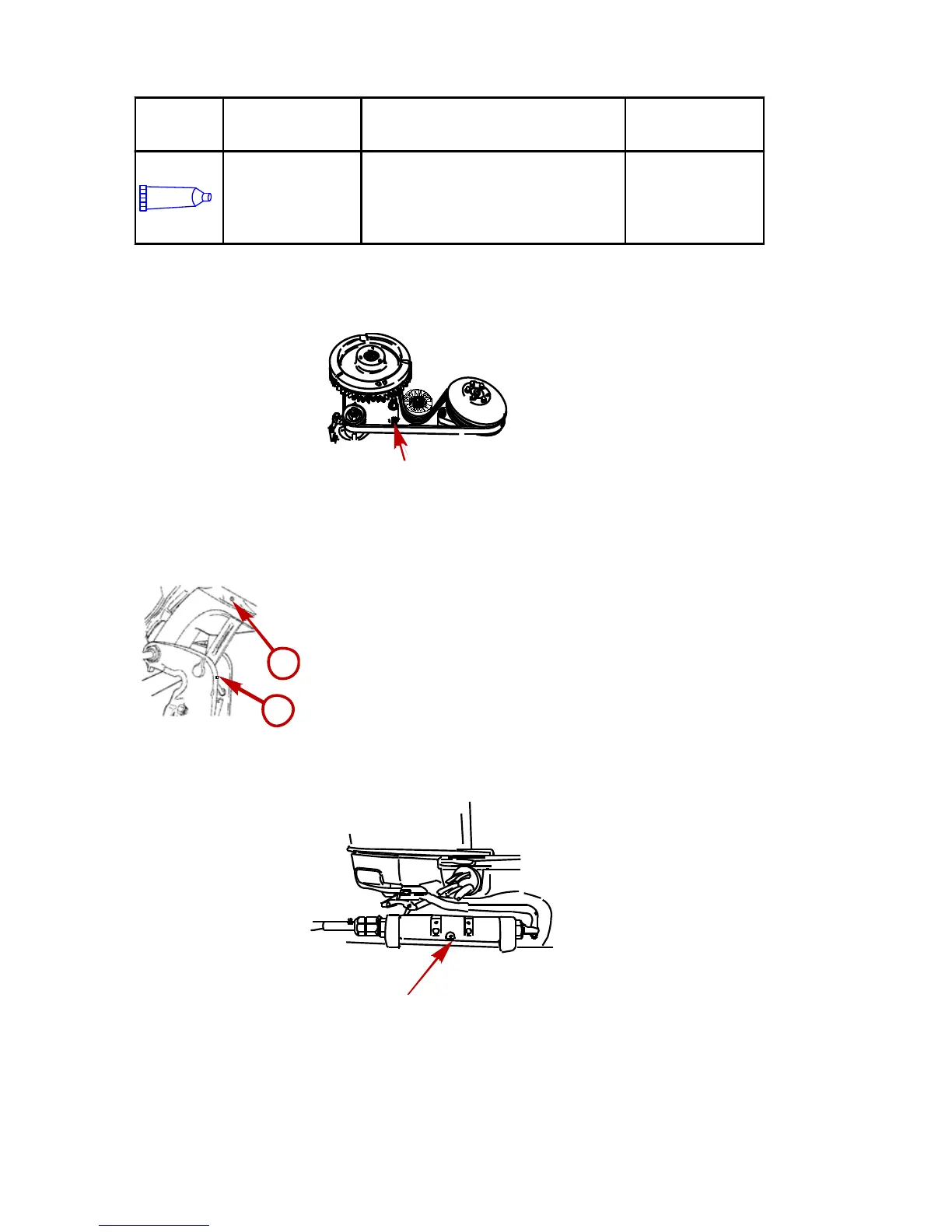

• Alternator belt tensioner pivot shaft ‑ Lubricate through
fitting.
29399
• Swivel bracket ‑ Lubricate through fitting.
• Tilt support lever ‑ Lubricate through fitting.
a - Swivel bracket
b - Tilt support lever
• Tilt tube ‑ Lubricate through fitting.
27874
a
b
27873
