OUTBOARD INSTALLATION

eng 115

Description Nm lb‑in. lb‑ft

Outboard mounting locknuts and

bolts ‑ metal lift plates and setback

brackets

122 90

Electrical, Hoses, and Control Cables

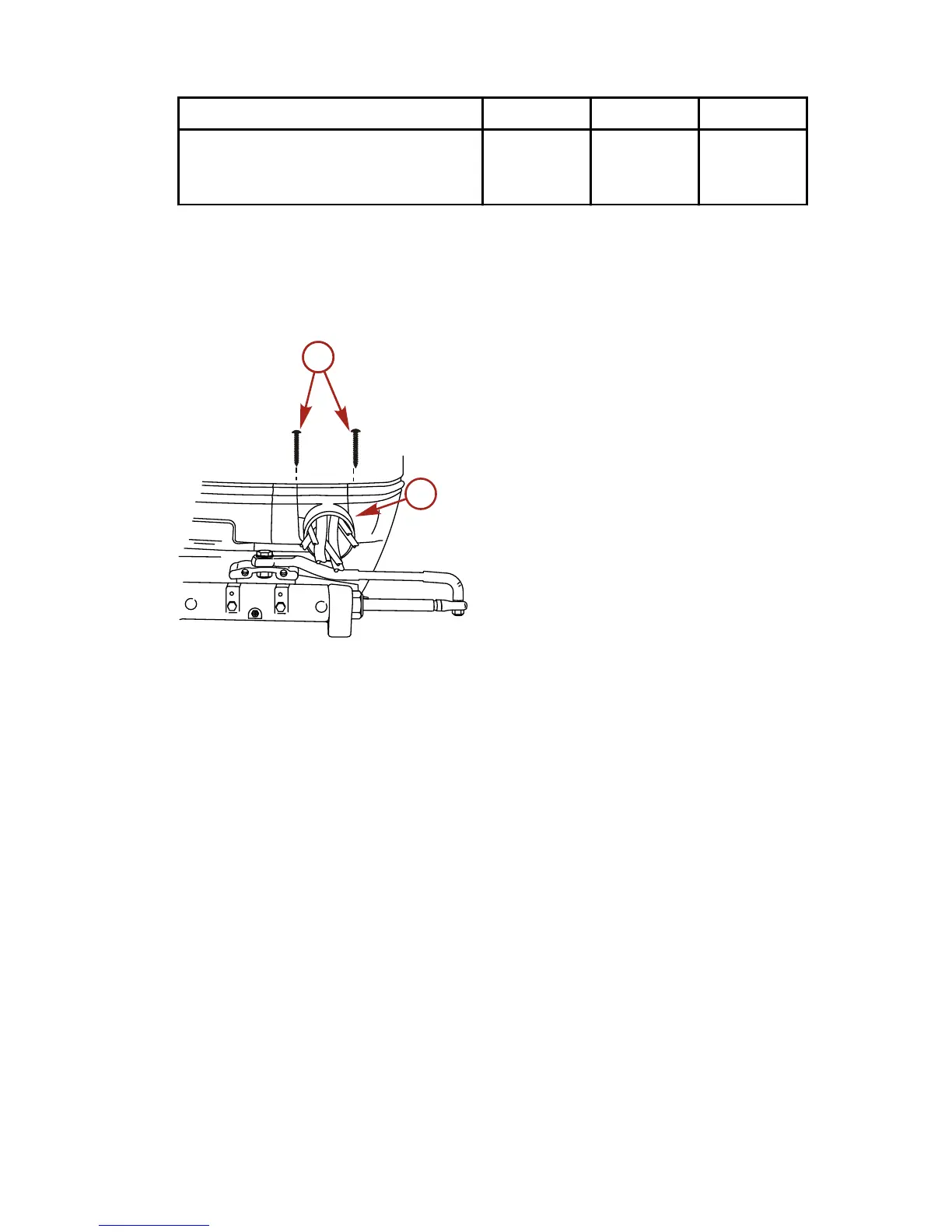

FRONT CLAMP DISASSEMBLY

Remove screws and open the front clamp assembly.

a - Screw (2)

b - Front clamp

7644
