MAINTENANCE
78 eng
Open the fuse holder and look at the silver colored band inside
the fuse. If band is broken, replace the fuse. Replace fuse with a
new fuse with the same rating.

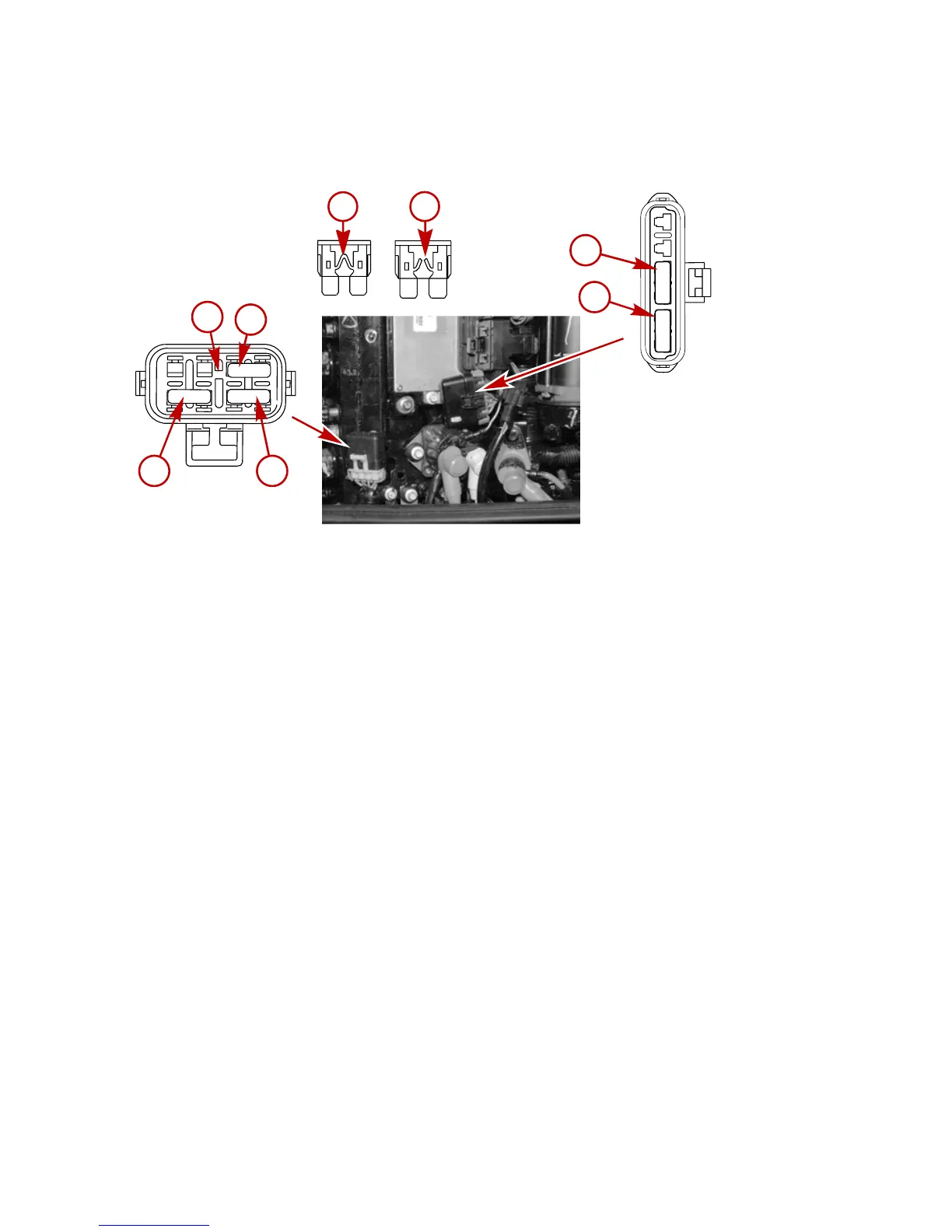

a - Good fuse
b - Blown fuse
c - Main power relay ‑ 15 amp fuse
d - Spare fuse slot
e - Ignition system circuit ‑ 20 amp fuse
f - Electric fuel pump/ECM driver power/injectors/oil pump
circuit ‑ 20 amp fuse
g - Power to 10‑pin SmartCraft connector ‑ 5 amp fuse
h - Diagnostic circuit 4‑pin connector ‑ 2 amp fuse
Corrosion Control Anode
Your outboard has corrosion control anodes at different
locations. An anode helps protect the outboard against galvanic
corrosion by sacrificing its metal to be slowly eroded instead of
the outboard metals.
Each anode requires periodic inspection, especially in saltwater
which will accelerate the erosion. To maintain this corrosion
protection, always replace the anode before it is completely
eroded. Never paint or apply a protective coating on the anode
as this will reduce effectiveness of the anode.
