OUTBOARD INSTALLATION
eng 131
Propeller Installation
!
WARNING
Rotating propellers can cause serious injury or death. Never
operate the boat out of the water with a propeller installed.
Before installing or removing a propeller, place the drive unit in
neutral and engage the lanyard stop switch to prevent the
engine from starting. Place a block of wood between the
propeller blade and the anti‑ventilation plate.

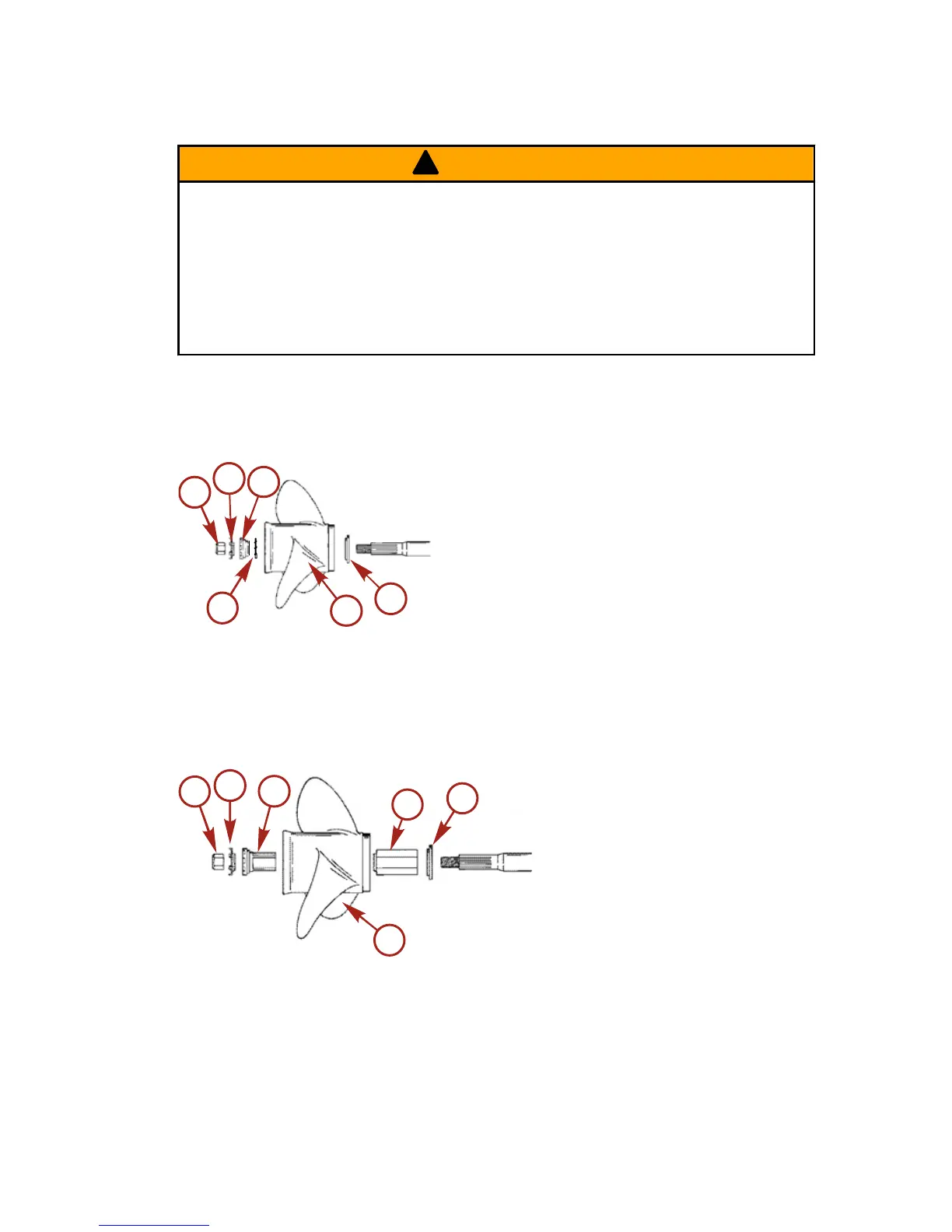

1. Flo‑Torq I drive hub propellers ‑ Install forward thrust hub,
propeller, continuity washer, rear thrust hub, propeller nut
retainer, and propeller nut onto the shaft.
a - Propeller nut
b - Propeller nut retainer
c - Rear thrust hub
d - Continuity washer
e - Propeller
f - Forward thrust hub
2. Flo‑Torq II drive hub propellers ‑ Install forward thrust hub,
replaceable drive sleeve, propeller, thrust hub, propeller nut
retainer, and propeller nut onto the shaft.
a - Propeller nut
b - Propeller nut
retainer
c - Rear thrust hub
d - Propeller
e - Replaceable drive
sleeve
f - Forward thrust hub
3. Place a block of wood between gearcase and propeller and
torque to specifications.
