OUTBOARD INSTALLATION
114 eng
1. Apply marine sealer to the shanks of the bolts, not to the
threads.
2. Fasten the outboard with the correct mounting hardware.
Tighten the locknuts to the specified torque.
IMPORTANT: Ensure a minimum of two full threads of the
mounting bolts extend beyond the locknut after tightening. The
locknut must be drawn tight while still engaging the bolt threads
and not contacting the shank of the bolt.
NOTE: For more accurate torque, tighten the mounting locknuts
rather than the outboard mounting bolts.

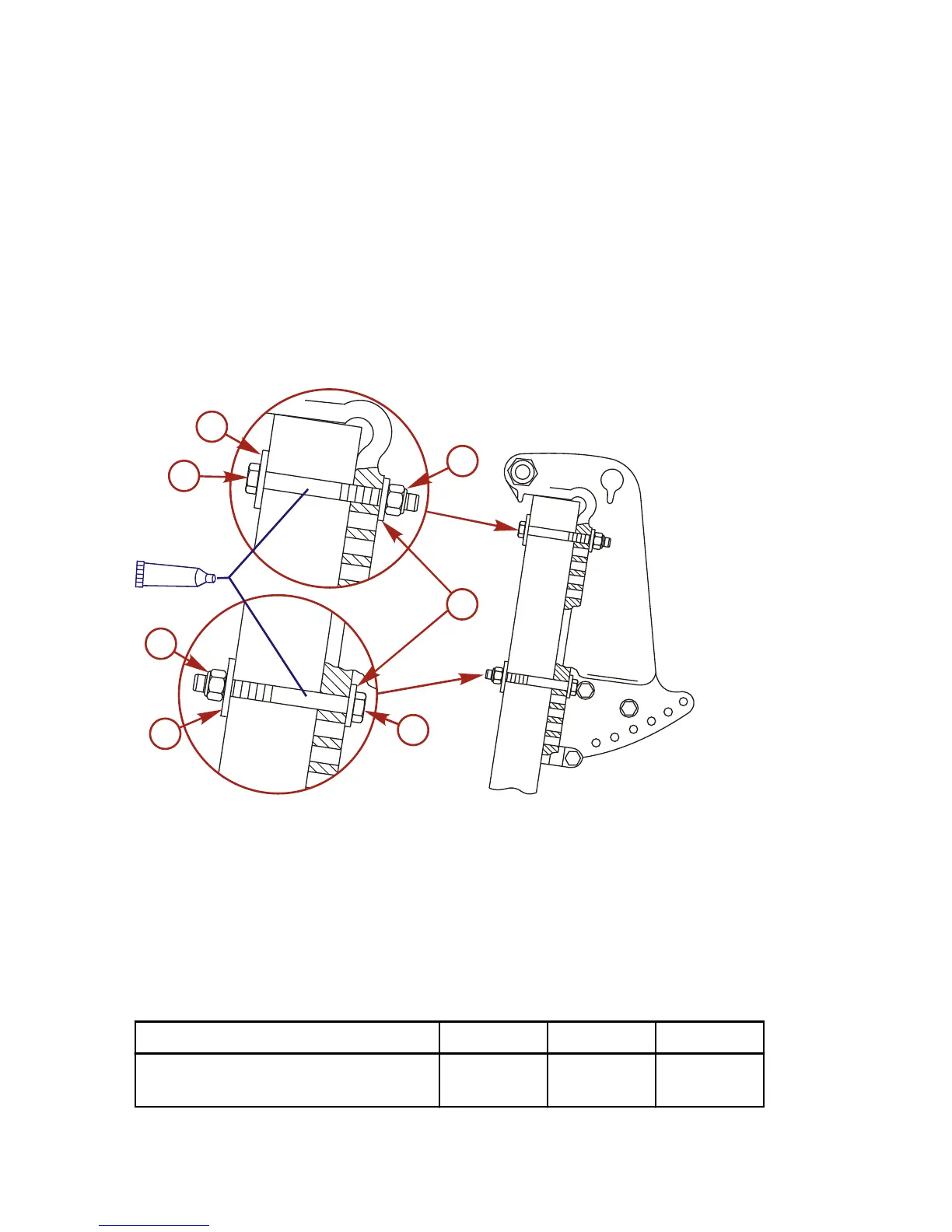

a - 1/2 in. diameter outboard mounting bolt (4)
b - 7/8 in. flat washer (4)
c - Nylon insert locknut (4)
d - 1‑1/2 in. flat washer (4)
e - Marine sealer ‑ apply to the shank of the bolts, not the
threads
Description Nm lb‑in. lb‑ft
Outboard mounting locknuts and
bolts ‑ standard boat transom
75 55
