OUTBOARD INSTALLATION
108 eng
!
WARNING
Improper fasteners or improper installation procedures can
result in loosening or disengagement of the steering link rod.
This can cause a sudden, unexpected loss of boat control,
resulting in serious injury or death due to occupants being
thrown within or out of the boat. Always use required
components and follow instructions and torque procedures.
!
WARNING
Worn, loose, or seized steering components can lead to loss of
boat control. Inspect all steering attachment components for
wear, lubricate all attachment hardware, and check all
fasteners for proper tightness in accordance with the inspection
and maintenance schedule.

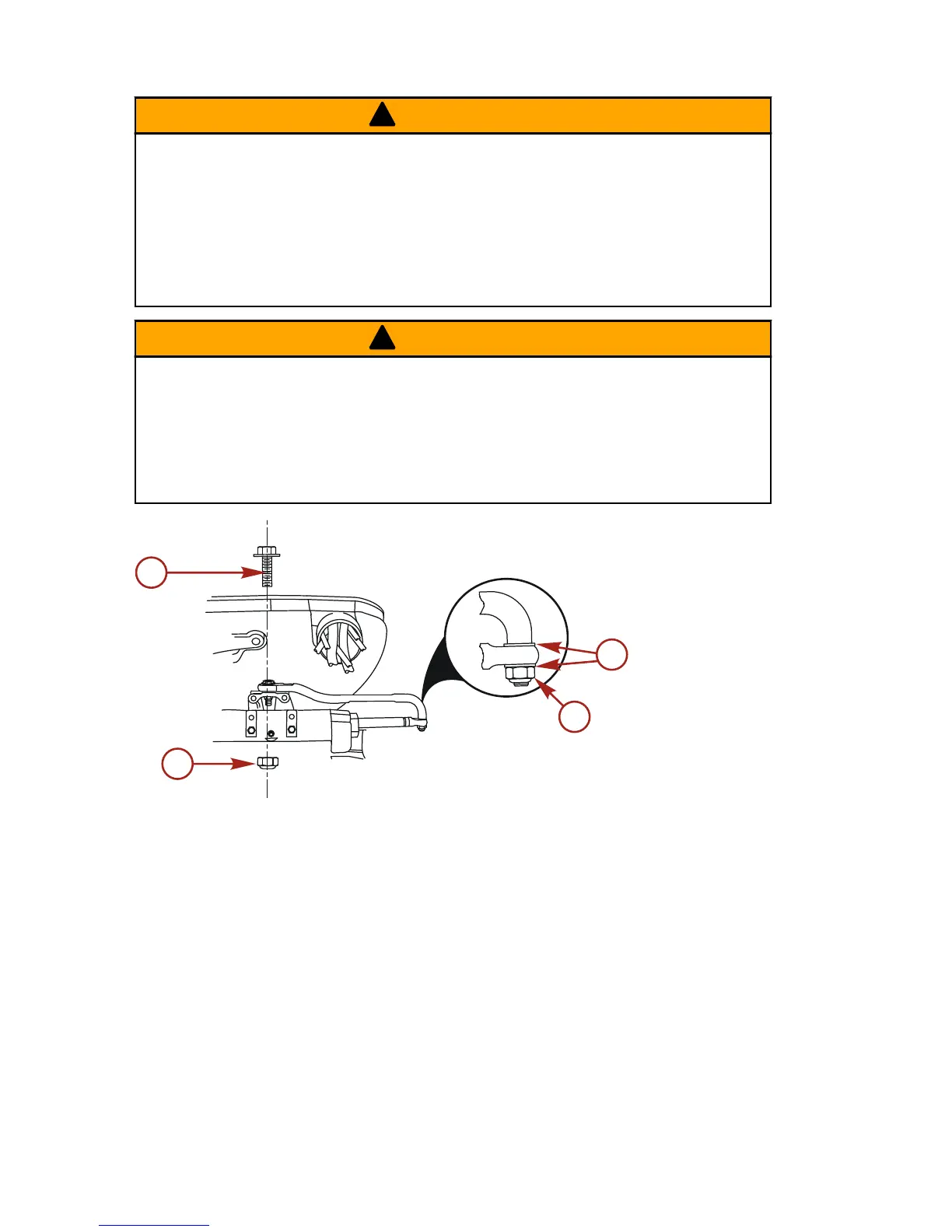

a - Special washer head bolt (P/N 10‑849838)
b - Nylon insert locknut (P/N 11‑826709113) ‑ used on head
bolt
c - Flat washer (2)
d - Nylon insert locknut (P/N 11‑826709113) ‑ used on cable
coupler
1. Assemble steering link rod to steering cable coupler with two
flat washers "c" and a self‑locking nylon insert locknut "d."
Tighten the locknut until it seats, then loosen ¼ turn.
