OUTBOARD INSTALLATION
eng 119

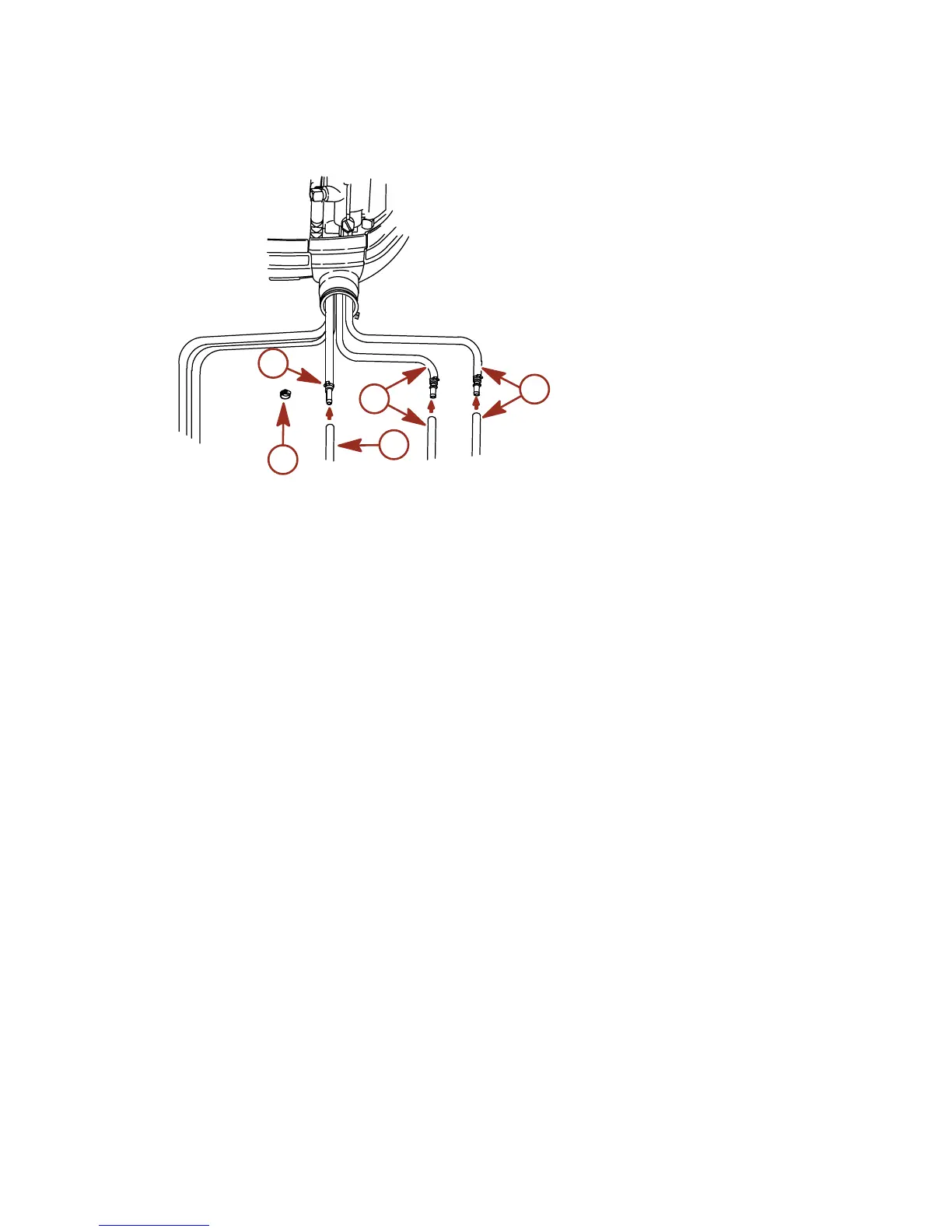

2. Connect the remote oil hoses to the engine hose
connections. Fasten hose connections with cable ties.
a - Hose clamp
b - Cable tie
c - Oil hose without
blue stripe
d - Oil hose with blue
stripe
e - Remote fuel hose
SPEEDOMETER AND WATER PRESSURE TUBING
CONNECTIONS
NOTE: This applies to models without SmartCraft gauges.
This outboard has a speedometer water pickup located in the
leading edge of the gearcase. If you want to use this water
pickup for the speedometer, disconnect the water pickup tubing
from the speedometer sensor and route tubing out of the cowl.
Install coupler (provided with outboard) on end of tubing.
a
d
c
3767
b
e
