ENGINE INSTALLATION

115

Remote Wiring Harness and Control Cable

Installation

REMOTE WIRE HARNESS CONNECTION

1. Remove the two bolts and remove the access cover.

32048

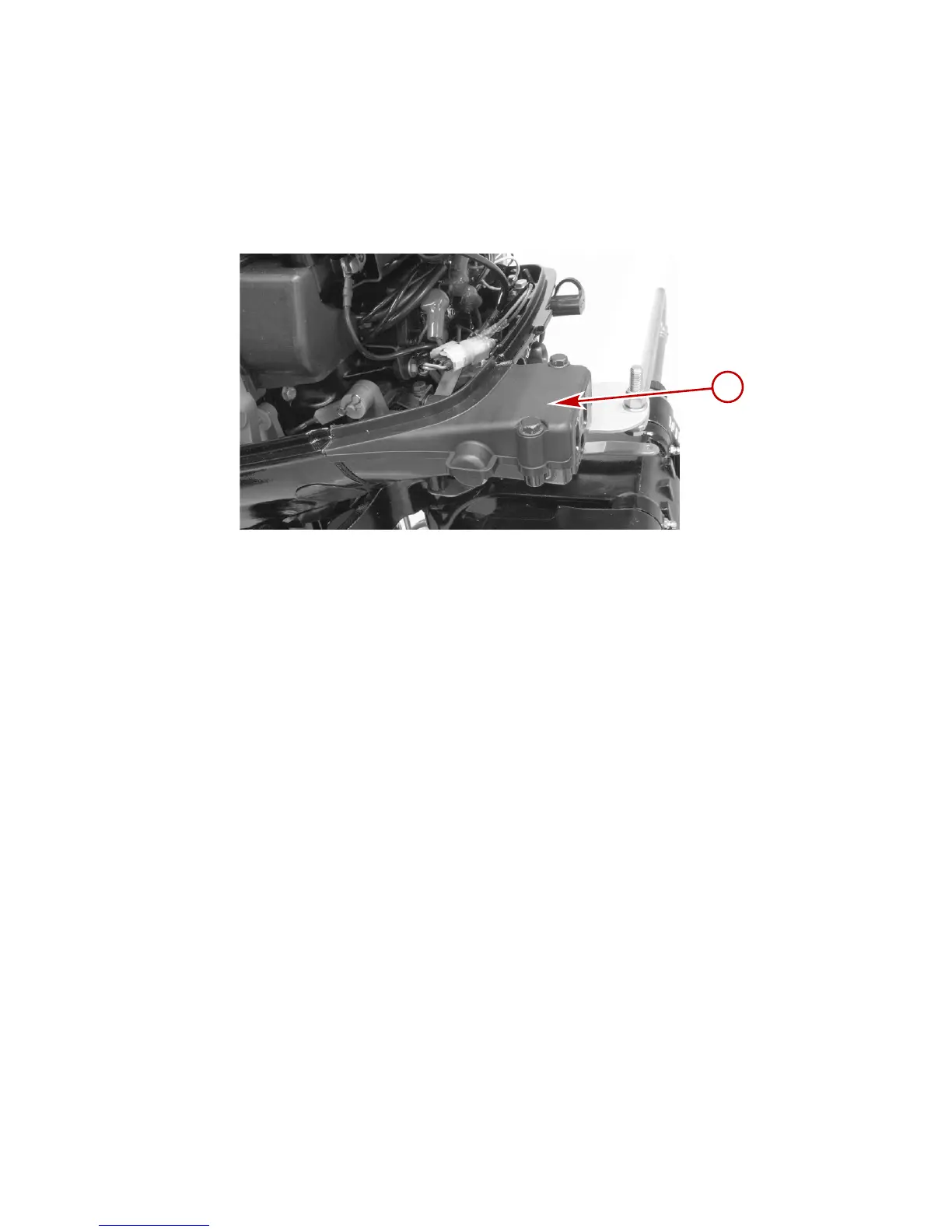

a - Access cover

2. Connect the remote harness to the engine harness connector.

3. Route the remote wiring harness through the rubber grommet.
