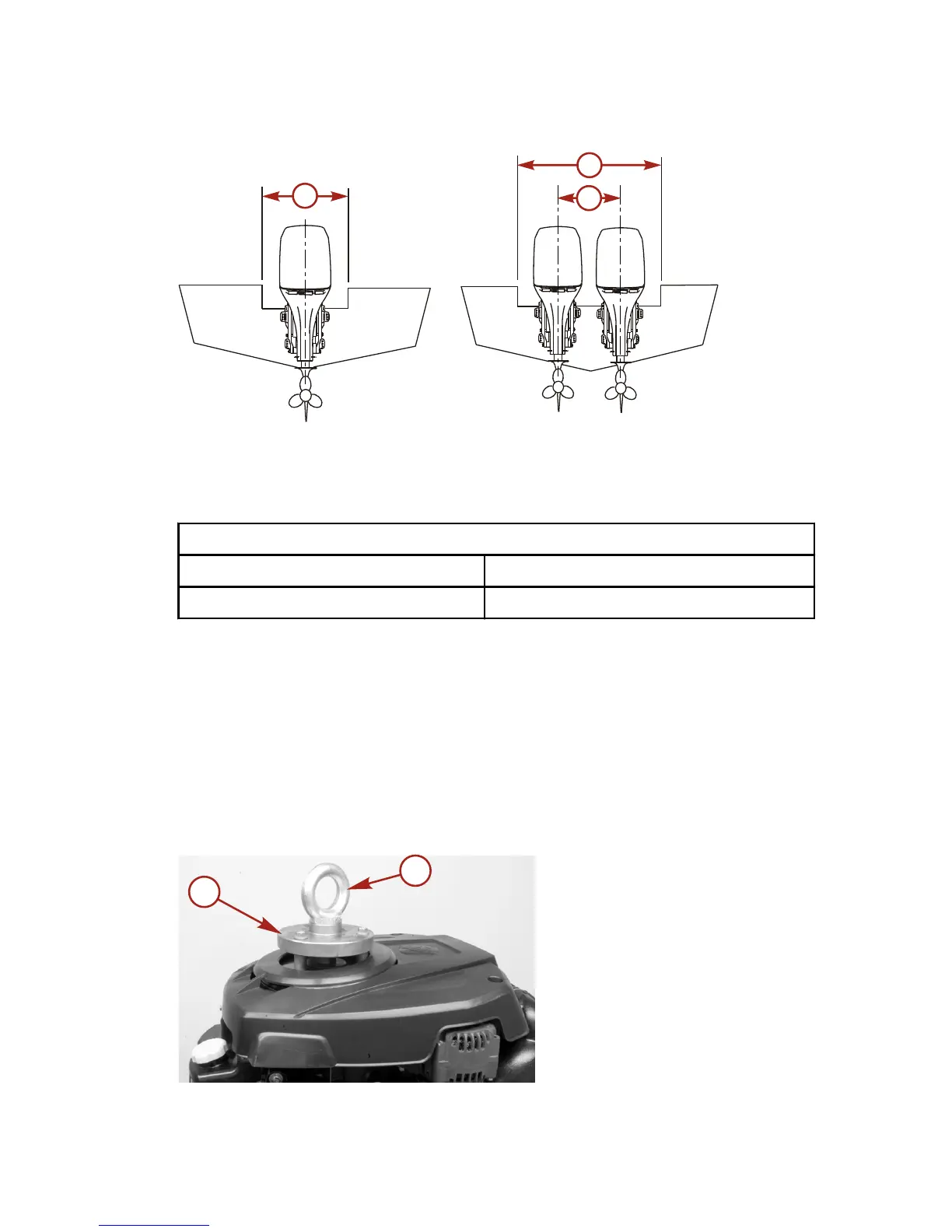

Installation Specifications
a - Minimum transom opening
b - Engine centerline for dual engine ‑ 66.0 cm (26 in.)
Minimum Transom Opening
Single engine 84.2 cm (33 in.)
Dual engine 149.9 cm (59 in.)
Lifting Outboard
1. Remove the top cowl.
2. Install the lifting base to the flywheel using three bolts. Tighten the bolts
securely.
3. Thread the lifting eye into the lifting base.
4. Connect a hoist that has a minimum lift capacity of 450 kg (1000 lb) to the
lifting eye.
5. Lift the outboard and place it on the transom.
a - Lifting base
b - Lifting eye
