Mercury 150 FourStroke User Manual

Open the fuse holder and look at the silver colored band inside the fuse. If the
band is broken, replace the fuse. Replace fuse with a new fuse with the same
rating.

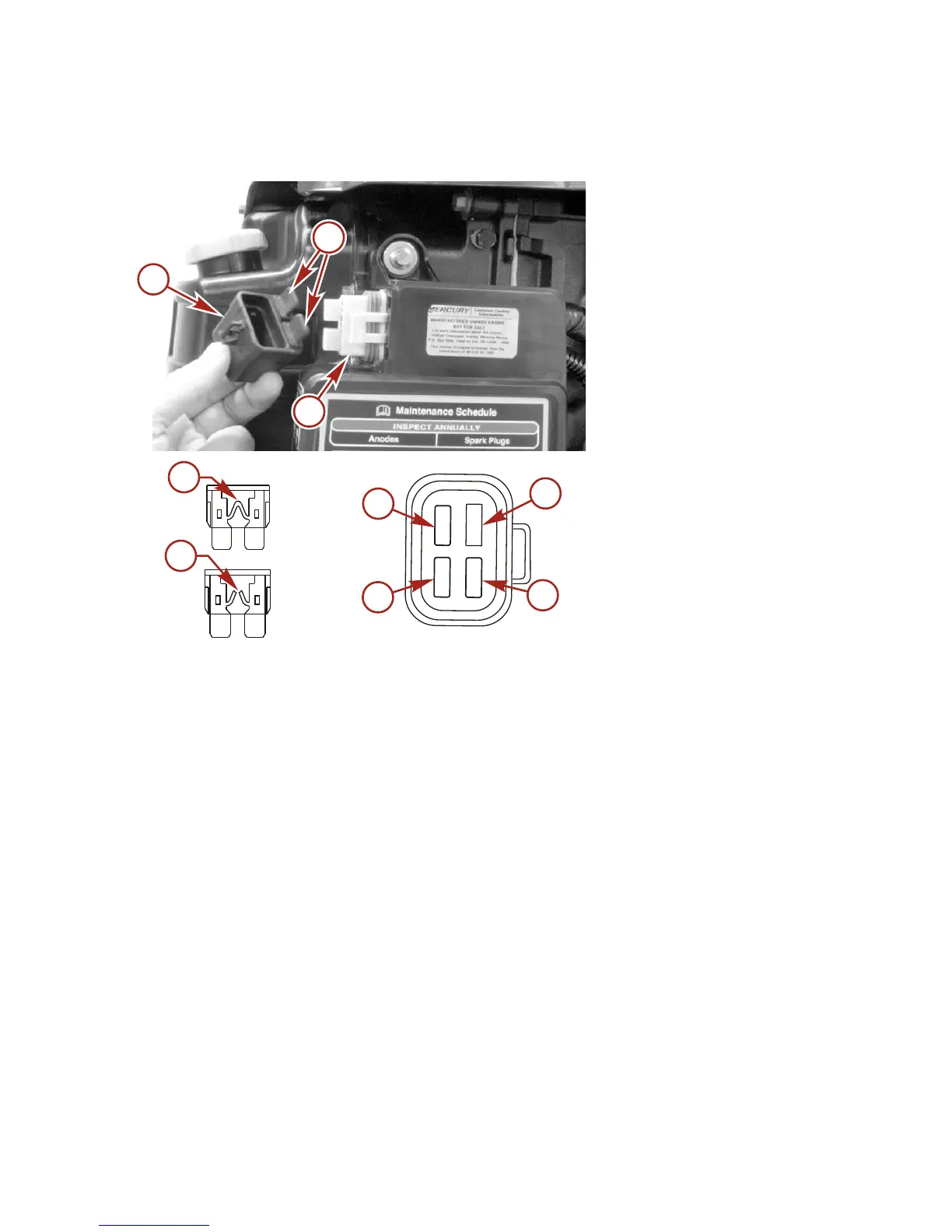

a - Cover
b - Spare fuse holders
c - Fuse holder
d - Fuse 4 ‑ IGN. 20 amp ‑ ignition system
e - Fuse 2 ‑ FUEL 20 amp ‑ fuel delivery
f - Fuse 1 ‑ DIAG. 2 amp ‑ diagnostics/vessel (accessory) harness
g - Fuse 3 ‑ HELM 15 amp ‑ 14 pin remote control harness/cowl trim
switch
h - Good fuse
i - Blown fuse
h
i
47408
20
20
2
15
a
b
c
d
e
f
g
