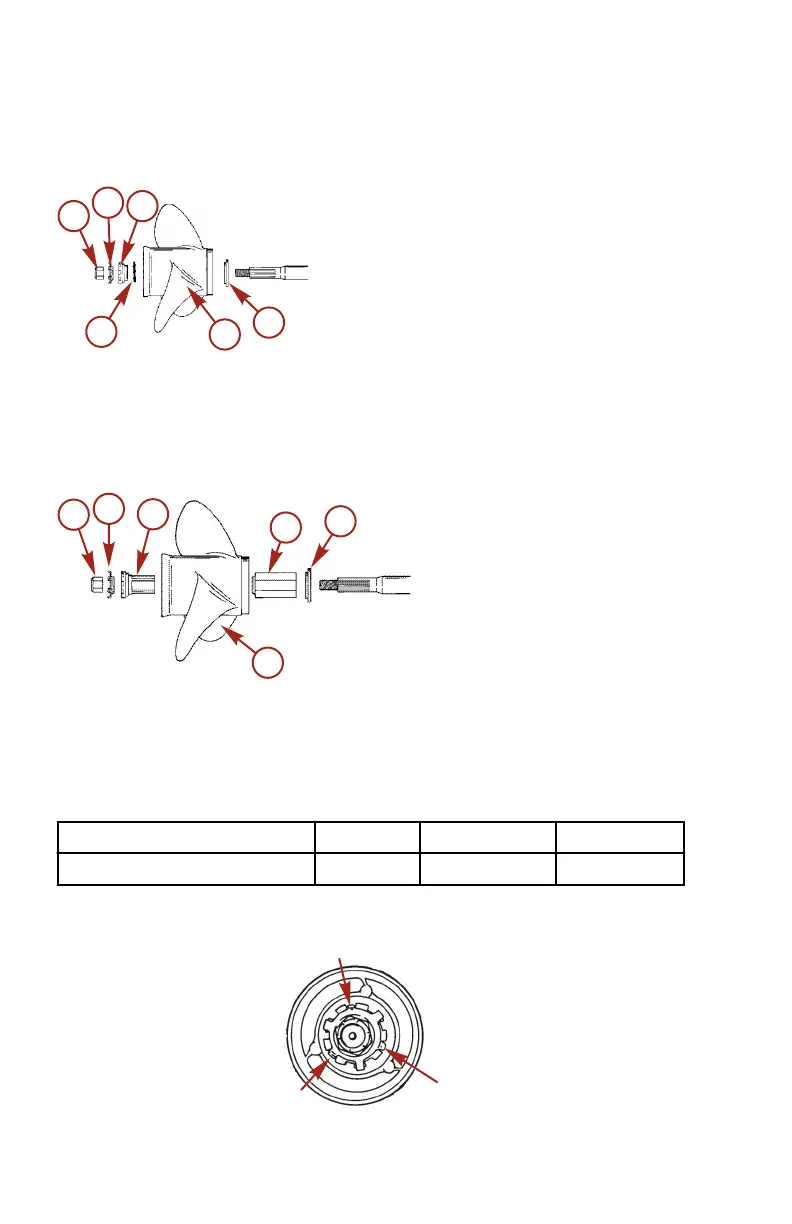

7. Flo‑Torq I drive hub propellers ‑ Install forward thrust hub,
propeller, continuity washer, rear thrust hub, propeller nut
retainer, and propeller nut onto the shaft.
a - Propeller nut
b - Propeller nut retainer
c - Rear thrust hub
d - Continuity washer
e - Propeller
f - Forward thrust hub
8. Flo‑Torq II drive hub propellers ‑ Install forward thrust hub,
replaceable drive sleeve, propeller, thrust hub, propeller nut
retainer, and propeller nut onto the shaft.
a - Propeller nut
b - Propeller nut
retainer
c - Rear thrust hub
d - Propeller
e - Replaceable drive
sleeve
f - Forward thrust hub
9. Place a block of wood between gearcase and propeller and
torque to specifications.
Description
Nm lb. in. lb. ft.
Propeller nut 75 55
10.Secure propeller nut by bending three of the tabs into the
thrust hub grooves.
26945
a
b
c
d
e
f
26908
a
b
c
d
e
f
26941
