Mercury 200 OptiMax DTS - Slim Binnacle Control Features and Operation

FEATURES AND CONTROLS
eng 61
Slim Binnacle Control Features and Operation

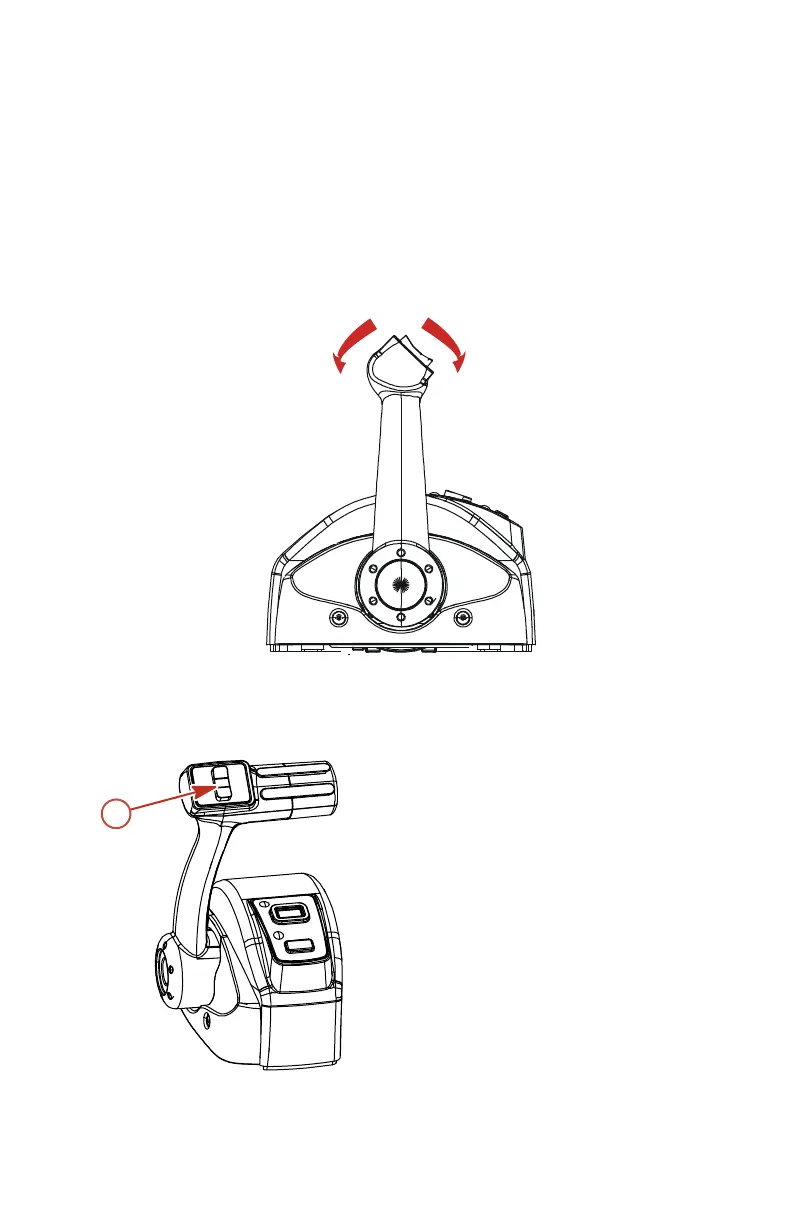

1. Operation of shift and throttle is controlled by the movement
of the control handle. Push the control handle forward from
neutral to the first detent for forward gear. Continue pushing
forward to increase speed. Pull the control handle back from
neutral to the first detent for reverse gear. Continue pushing
back to increase speed.
F
N
R
12871
2. Trim switch (if equipped) ‑ Pressing the trim switch allows
the engine to trim up or down.
a - Trim switch
12874
a
