INSTALLATION MANUAL

90-864198020 Page 13 of 77

NOTE: Some installations may have 7/32 in. (5 mm) holes drilled in transom using four 5/16

in. diameter stainless steel lag bolts in place of round head screws. In any case, flat washers

and O-rings are required as outlined.

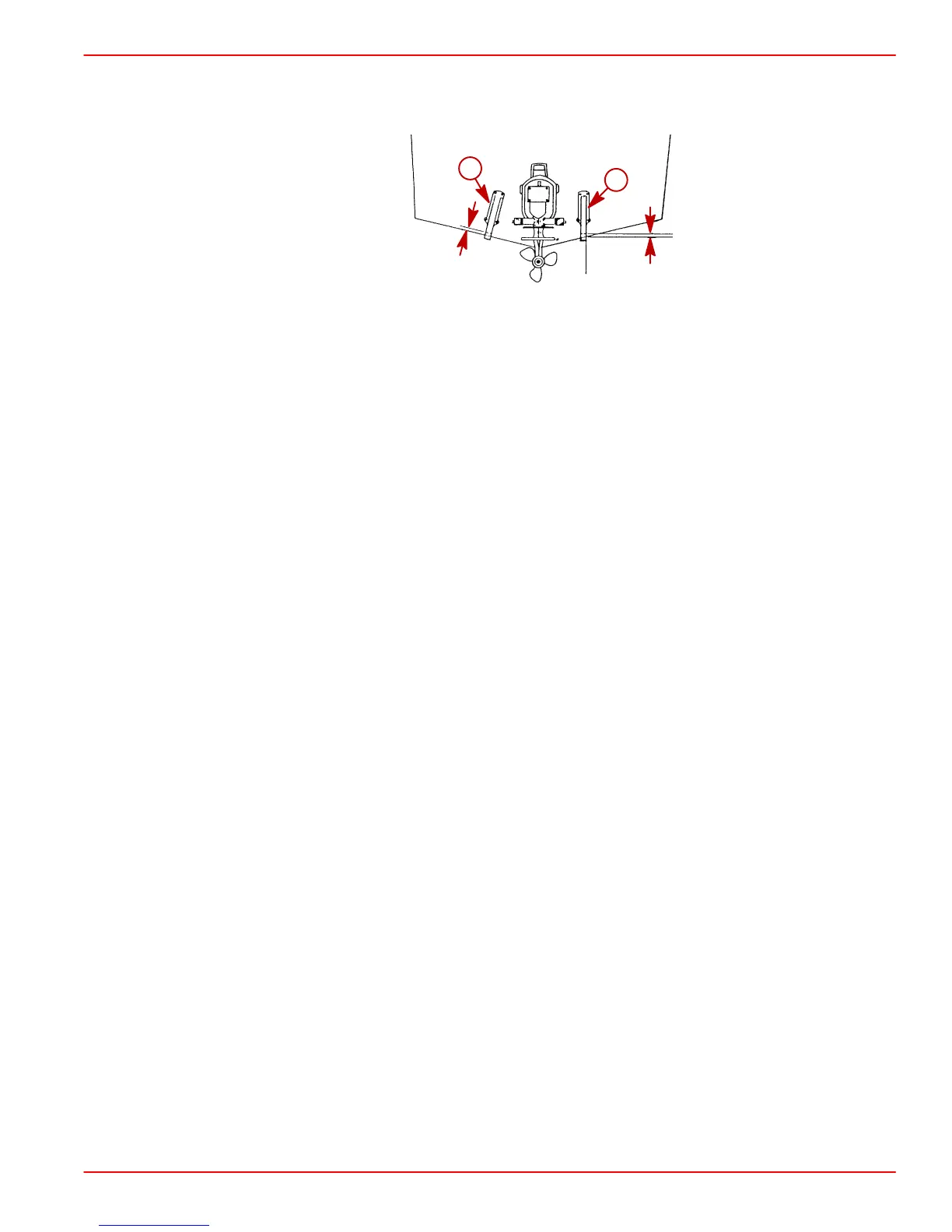

72641

Water Pickup Installed on Transom

a-Diagonal Mount - Leading Edge Of Pickup 1/8 in. (3.2 mm) From Boat Bottom.

b-Vertical Mount - Corner Of Leading Edge Of Pickup 1/8 in. (3.2 mm) From Boat

Bottom

5. Secure water pickup from inside with locknuts and washers (unless using lag bolts).

6. Tighten fasteners securely.
