INSTALLATION MANUAL
90-864198020 Page 41 of 77
Velvet Drive Transmissions
IN-LINE AND REMOTE V-DRIVE
IMPORTANT: Velvet Drive Transmission Warranty is jeopardized if the shift lever pop-
pet ball or spring is permanently removed, if the shift lever is repositioned or changed
in any manner or if remote control and cable do not position shift lever correctly.
22457
FNR––
F
R
a
b
c
d
e

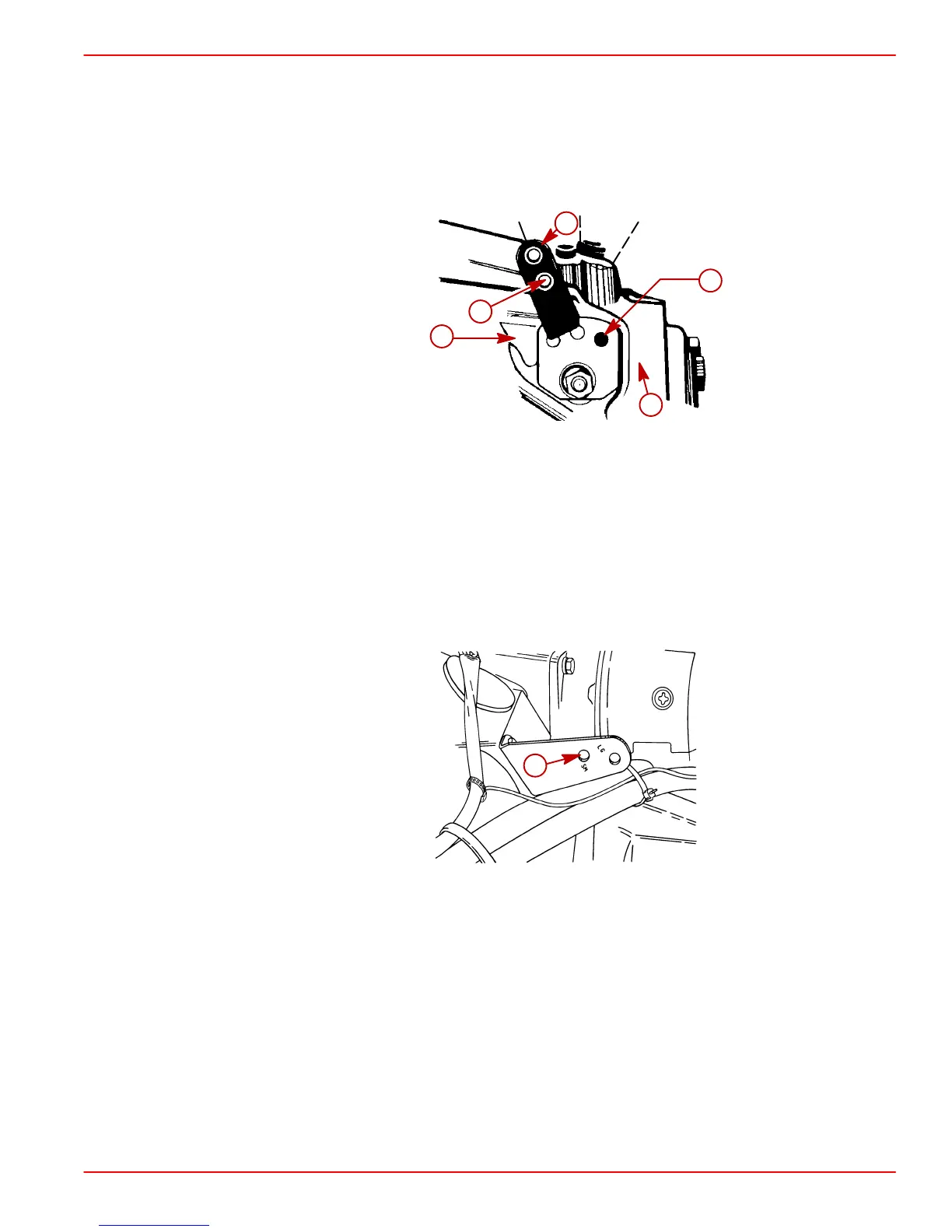

a-Transmission Shift Lever
b-Shift Lever MUST BE Over This Letter In FORWARD
c-Shift Lever MUST BE Over This Letter In REVERSE
d-Poppet Ball MUST BE Centered In Detent Hole For Each F-N-R Position
(FORWARD Gear Shown)
e-Install Shift Lever Stud in This Hole, If Necessary, To Center Poppet Ball in
FORWARD And REVERSE Detent Holes
1. Verify shift cable stud is in appropriate stud hole as indicated. Tighten elastic stop nut
securely.
50947
a
a-Shift Cable Anchor Stud Hole
