INSTALLATION MANUAL
90-864198020 Page 17 of 77
Coolant Recovery System Connections
1. Select a mounting location for coolant recovery bottle and mounting bracket that meets
all of the following:
• Within limits of clear plastic tubing.
• Level with or above the heat exchanger fill neck.
• Accessible for observing coolant level and filling.
2. Mount coolant recovery bottle and mounting bracket in desired location, using two
3/4 in. (19 mm) long screws and flat washers.
3. Route plastic tubing to recovery bottle. Ensure that tubing is positioned away from any
moving parts. Cut plastic tubing as required and connect to bottom connection on recov-
ery bottle and secure with tubing clamp provided.
4. Fasten plastic tubing to boat as necessary, with the 2 hose clips and 1/2 in. (13 mm) long
screws provided.

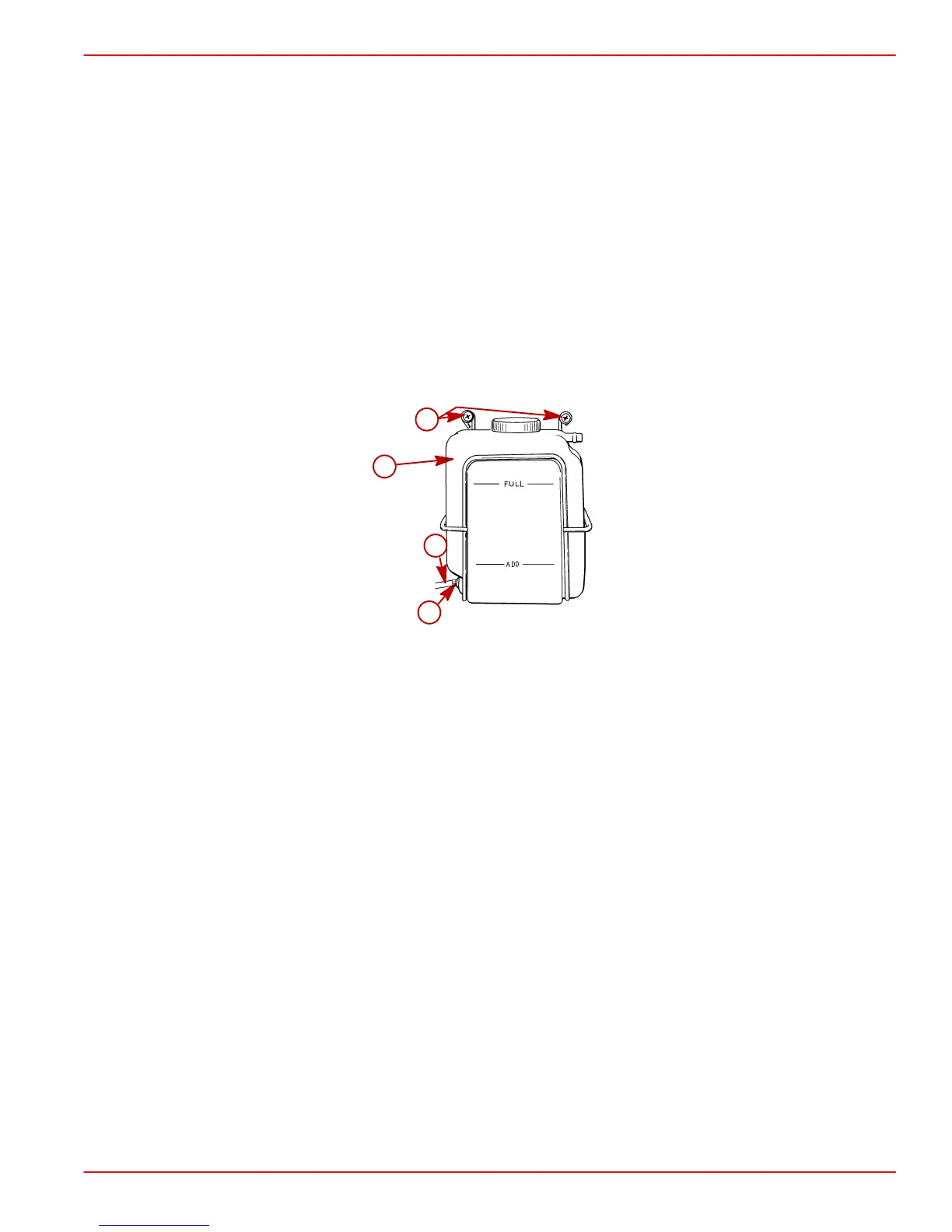

70547
a
b
c
d
a-Recovery Bottle And Mounting Bracket
b-Screws And Flat Washers
c-Plastic Tubing
d-Tubing Clamp
To Next Page
