INSTALLATION MANUAL
90-864198020 Page 35 of 77

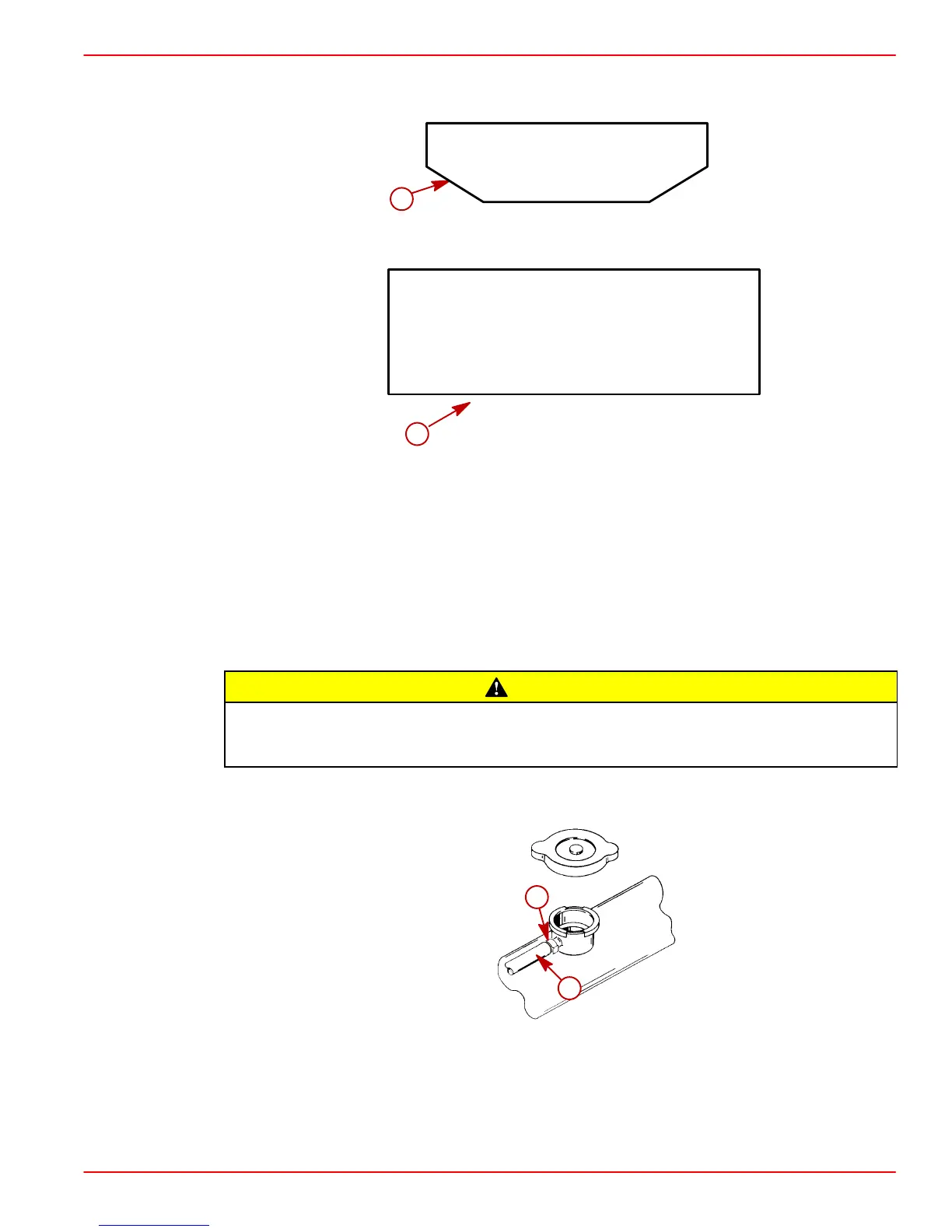

6. Place the large decal on the instrument panel or other appropriate location in easily
viewed by the operator.
75434
ALARM INDICATES LOW
OIL OR OVERHEATING
APPLY THE PROPER DECAL TO THE DASHBOARD
OR OTHER APPROPRIATE LOCATION:
AUDIO WARNING HORN WILL SOUND WHEN:
1. ENGINE OIL PRESSURE IS TOO LOW,
2. ENGINE WATER TEMP. IS TOO HOT, OR
3. TRANSMISSION TEMPERATURE IS TOO HOT.
TO TEST THE AUDIO WARNING HORN:
TURN KEY TO ON POSITION (ENGINE OFF)
a
b
a-Small Decal (Transparent)
b-Larger Decal
7. Test audio warning system during Predelivery Preparation section.
Fluid Connections
Coolant Recovery Bottle
CAUTION
Avoid engine overheating and subsequent damage to engine. The coolant recovery
system will not operate properly without proper sealing. Plastic tubing MUST seal
completely at connections.
1. Connect plastic tubing to bayonet fitting on heat exchanger. Secure with tubing clamp
provided.
70548
a
b
a-Plastic Tubing
b-Tubing Clamp
2. Remove cap from coolant recovery reservoir and fill to FULL mark with coolant solution.
3. Reinstall cap.
To Next Page
