INSTALLATION MANUAL
90-864198020 Page 49 of 77
ZF / Hurth Transmissions
IMPORTANT: These ZF / Hurth transmissions are full reversing transmissions. Direc-
tion of output/propeller rotation is determined by hookup of shift cable at remote con-
trol.
Shift cable must be hooked up to remote control before starting installation and adjustment
procedures. Refer to “Transmission - Propeller Rotation”, as previously outlined in the front
of this manual, for transmission shift lever direction of movement versus propeller shaft
output direction of rotation.
For Right Hand Propeller Rotation – Shift cable hookup at remote control must result in
shift cable end guide moving in direction “A” when remote control handle is placed in
FORWARD position.
For Left Hand Propeller Rotation – Shift cable hookup at remote control must result in shift
cable end guide moving in direction “B” when remote control handle is placed in
FORWARD position.

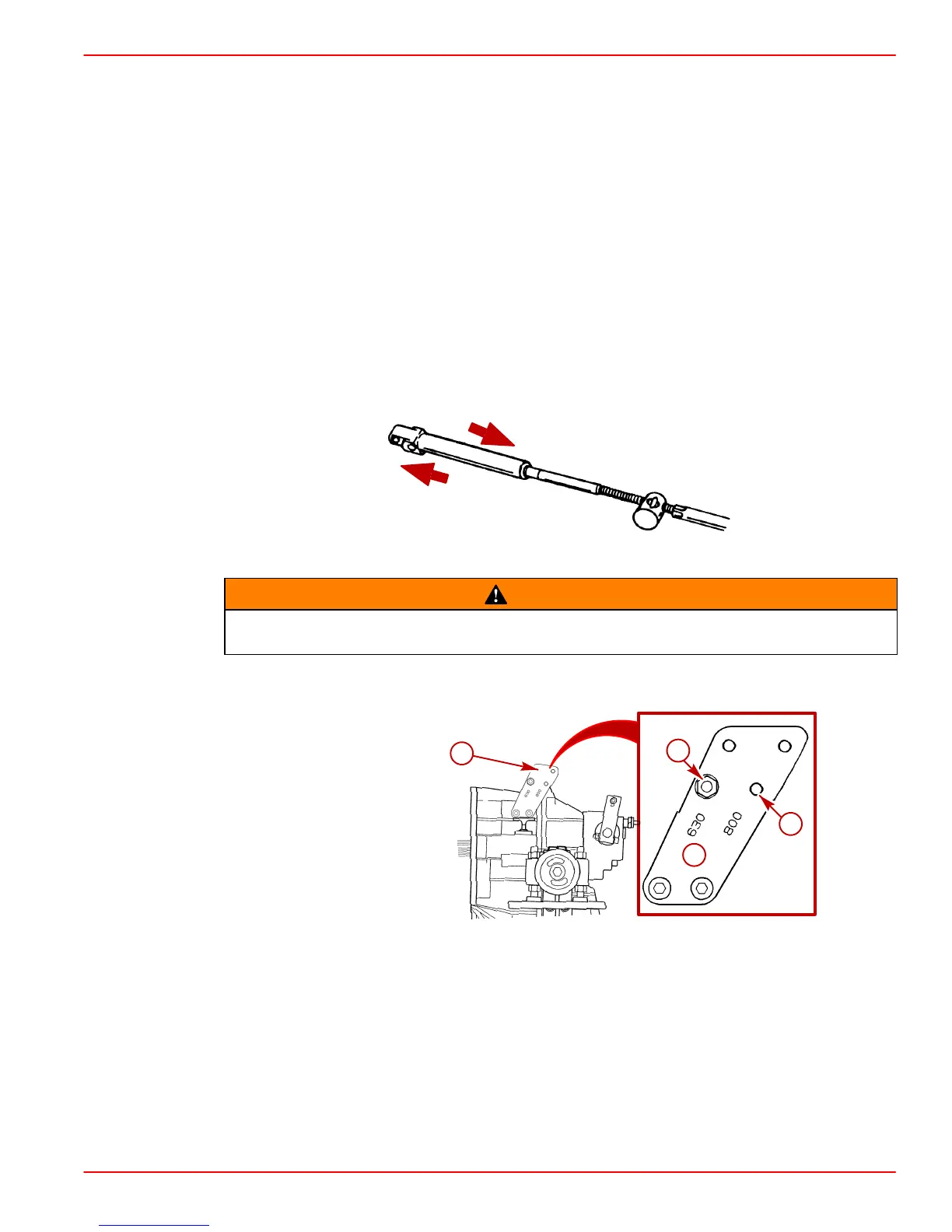

23242
A
B
WARNING
Avoid serious injury or property damage caused by improper shifting. Anchor stud
for shift cable must be installed in the correct hole.
1. Be certain anchor stud is installed in the correct mount hole as shown by the following
illustration.
73588
71020
a
c
b
a
Shift Cable Bracket - Anchor Stud Positions
a-Cable Bracket
b-Quicksilver Shift Cable Anchor Stud Location - 630A and 630V
c-Quicksilver Shift Cable Anchor Stud Location - 800A
IMPORTANT: When installing shift cables, be sure that cables are routed in such a
way as to avoid contact with moving parts and/or sharp bends All bends must make
greater than an 8 in. ( 203 mm) radius. DO NOT fasten any items to shift cables.
