Mercury 350 MAG MPI Installation Manual

INSTALLATION MANUAL
Page 48 of 77 90-864198020
71780
71972
a
b
c
e
e
f
c
d
b
g

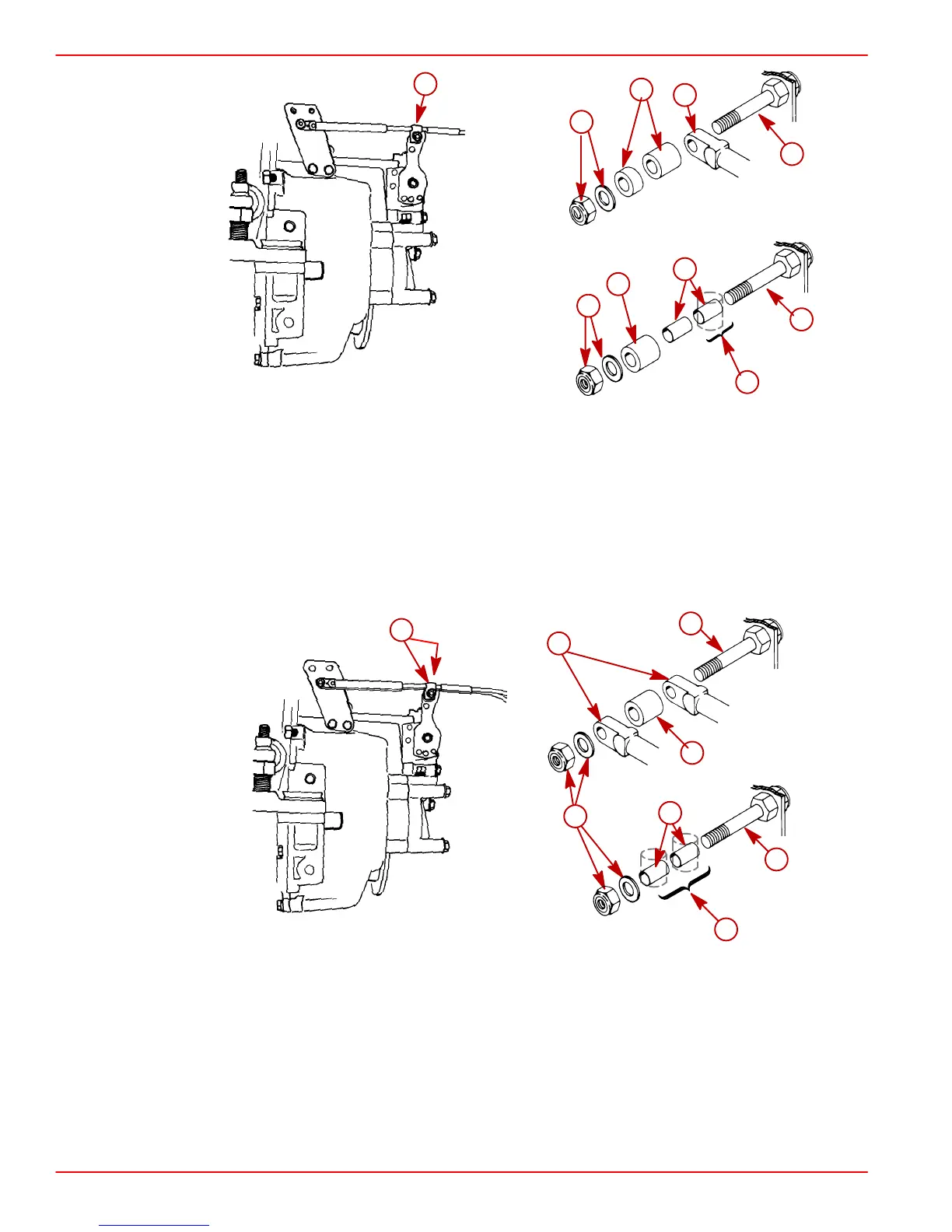

Typical Single Cable Installation - Rear Entry
a-Cable End Guide
b-Spacer (As Required)
c-Elastic Stop Nut and Washer
d-Bushings
e-Cable Barrel Location
f-Cable Barrel Stud
g-Cable End Guide Stud
71897
50073
g
b
e
a
d
c
f
e
Typical Dual Cable Installation - Rear Entry
a-Cable End Guide
b-Spacer (As Required)
c-Elastic Stop Nut and Washer
d-Bushings
e-Cable Barrel Location
f-Cable Barrel Stud
g-Cable End Guide Stud

Mercury 350 MAG MPI Specifications

General

Engine Type	V8
Horsepower	300 HP
Ignition	Electronic
Alternator	65 amp
Cylinders	8
Displacement	5.7 L
Fuel System	Multi-Port Fuel Injection (MPI)
Emissions	EPA Certified
