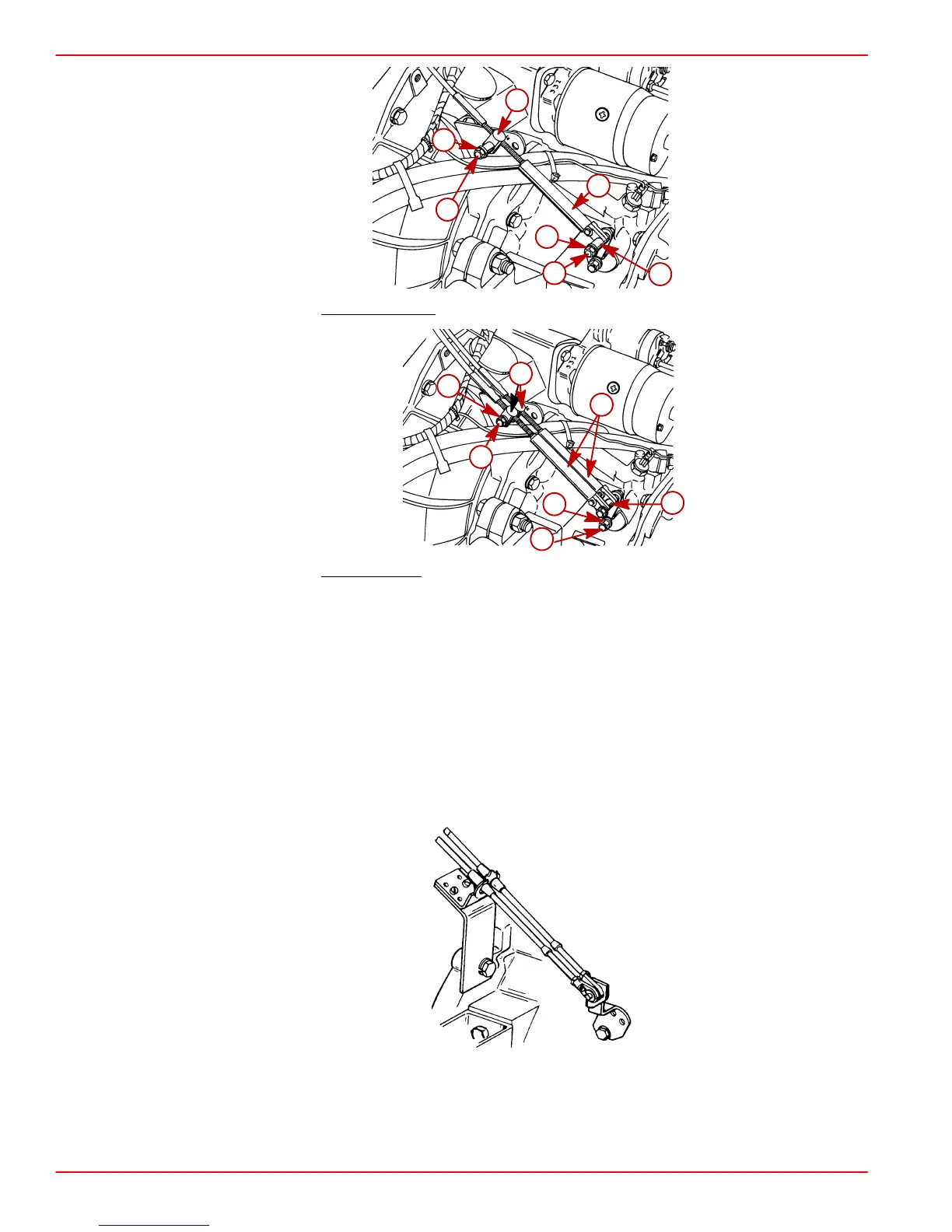

Front Entry Single Station Installation In-Line And V-Drive
50946
a
b
c
d
e
f
g
Front Entry Dual Station Installation In-Line And V-Drive
a-Cable End Guide
b-Cable Barrel
c-Cable Barrel Stud
d-Elastic Stop Nut and Washer
e-Spacer
f-Cable End Guide Stud
g-Elastic Stop Nut and Washer
NOTE: For models equipped with a dual station shift bracket such as the one shown, refer
to shift cable manufacturer’s instructions for adjusting the cable. Shift lever must be posi-
tioned as stated in the preceding steps.
22457
Dual Station Shift Bracket (Not Quicksilver)

Mercury 350 MAG MPI Specifications

General

Engine Type	V8
Horsepower	300 HP
Ignition	Electronic
Alternator	65 amp
Cylinders	8
Displacement	5.7 L
Fuel System	Multi-Port Fuel Injection (MPI)
Emissions	EPA Certified
