Mercury 4 4-Stroke

INSTALLATION
14
Installing Outboard

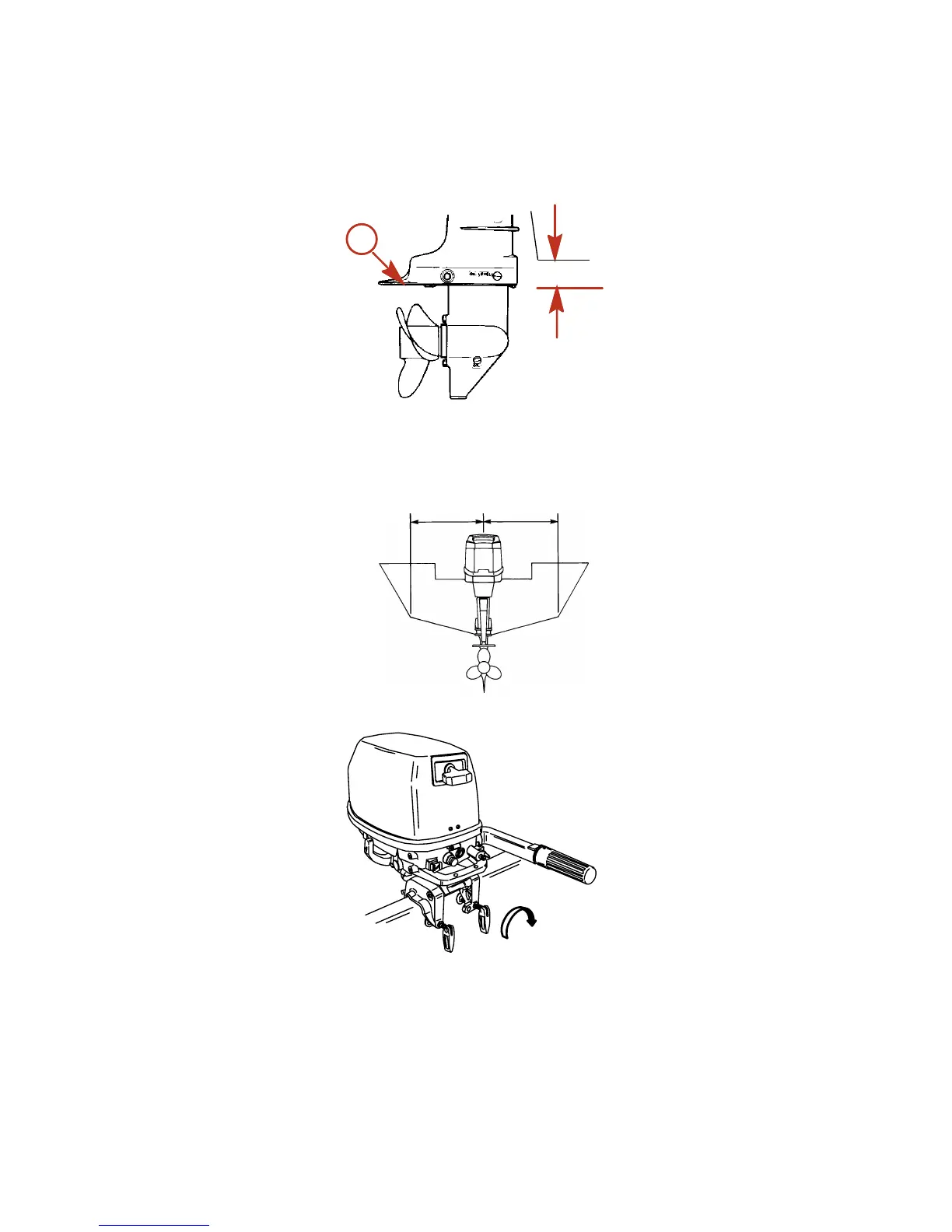

BOAT TRANSOM HEIGHT REQUIREMENT
1. Measure the transom height of your boat. The anti-ventilation plate should be 25 - 50 mm (1 - 2 in.) below
the bottom of the boat.
ob00445
a
a - Anti-ventilation plate
INSTALLING OUTBOARD ON TRANSOM
1. Place outboard on center line of transom.
ob00446
2. Tighten transom clamp handles.
ob00447
