Mercury 4 4-Stroke

MAINTENANCE
39
ob00493

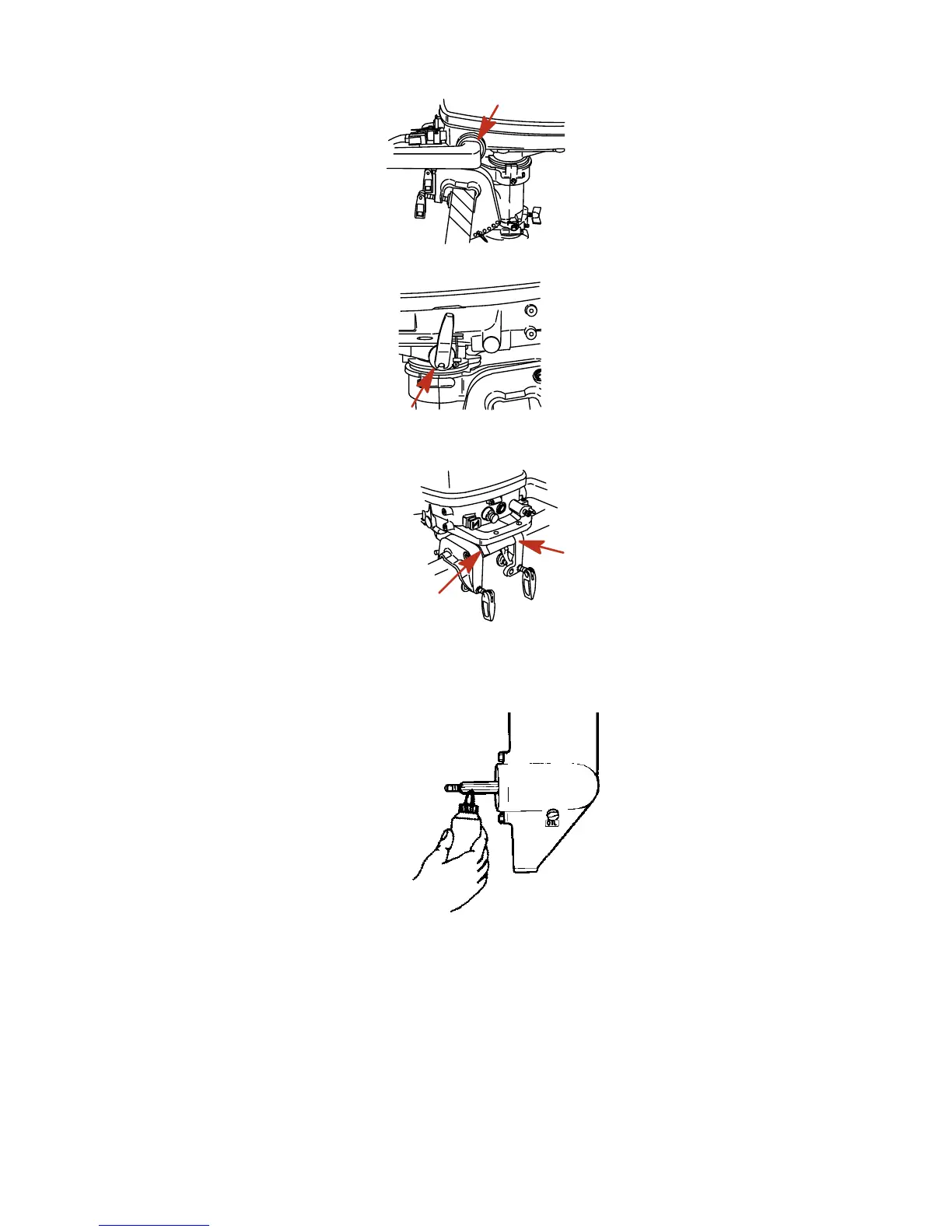

• Shift Handle Detent - Lubricate detent.
ob00494
2. Lubricate the following with Light Weight Oil.
• Tilt Pivot.
ob00495
3. Lubricate the following with Quicksilver or Mercury Precision Lubricants Anti-Corrosion Grease or 2-4-C with
Teflon.
• Propeller Shaft - Refer to Propeller Replacement for removal and installation of the propeller. Coat the
entire propeller shaft with lubricant to prevent the propeller hub from corroding to the shaft.
ob00490
Changing Engine Oil
ENGINE OIL CAPACITY
Engine oil capacaity is approximately 450 ml (15 fl. oz.).
OIL CHANGING PROCEDURE
1. Place outboard in an upright (not tilted) position.
2. Turn the outboard to gain access to the drain plug. Remove drain plug and drain engine oil into an appropriate
container. Lubricate the seal on the drain plug with oil and reinstall.
