FEATURES & CONTROLS
31

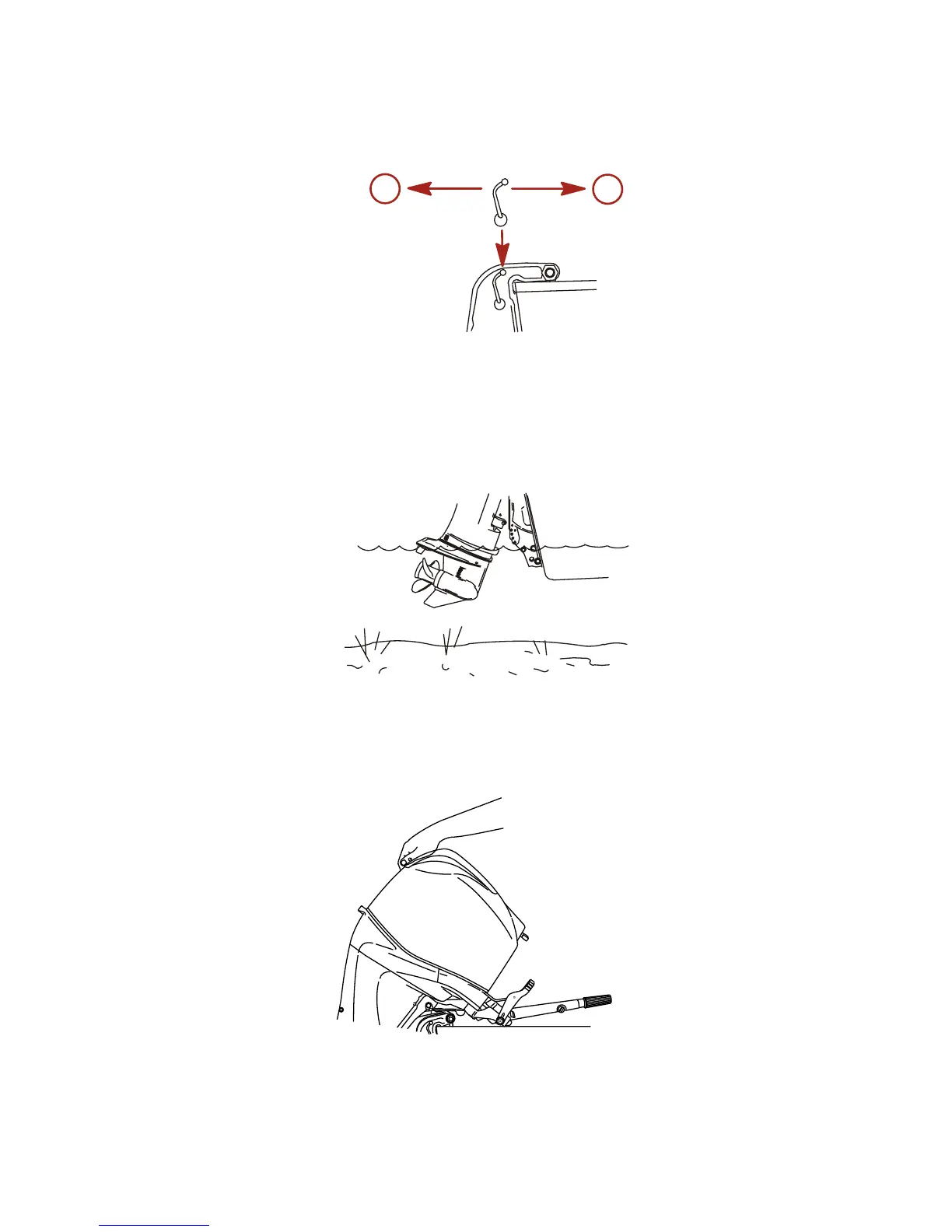

BASIC TILTING OPERATION
Move tilt lock lever to the tilt position. Tilt outboard to desired position and lock in place by moving the
tilt lock lever back to the lock/run position.
a
b
26802
a - Tilt position b - Lock/run position
SHALLOW WATER OPERATION
When operating your boat in shallow water, the outboard can be adjusted and locked at a higher tilt
angle. Operate your outboard at slow speed while tilted up for shallow water operation. Keep the cooling
water intake holes submerged in the water and continue to check for water discharge from the water
pump indicator hole.
26803
TILTING OUTBOARD TO FULL UP POSITION
1. Stop the engine. Move the tilt lock lever to the tilt position. Take hold of the top cowl grip and raise
outboard to full tilt up position. Lock the outboard in place by moving the tilt lock lever to the lock/
run position.
28916

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercury 40 4-Stroke and is the answer not in the manual?

Mercury 40 4-Stroke Specifications

General IconGeneral
Engine Type4-Stroke
Horsepower40 hp
Cylinders3
Fuel Induction SystemElectronic Fuel Injection (EFI)
StartingElectric
Displacement747 cc
Shaft Length20 in
Dry Weight216 lbs
SteeringRemote
Alternator Amp18 amp / 226 watt
Full Throttle RPM5500 - 6000 RPM
