Fuel Hose Connection - Remote Control Models
REMOTE FUEL HOSE SIZE
Minimum fuel hose inside diameter (ID) is 8 mm (5/16 in.). Use a separate fuel hose/fuel tank pickup for
each engine.
FUEL HOSE CONNECTION
Fasten the remote fuel hose to the fitting with a metal hose clamp or the plastic type hose clamp that is
provided with the outboard.
a
b
28511

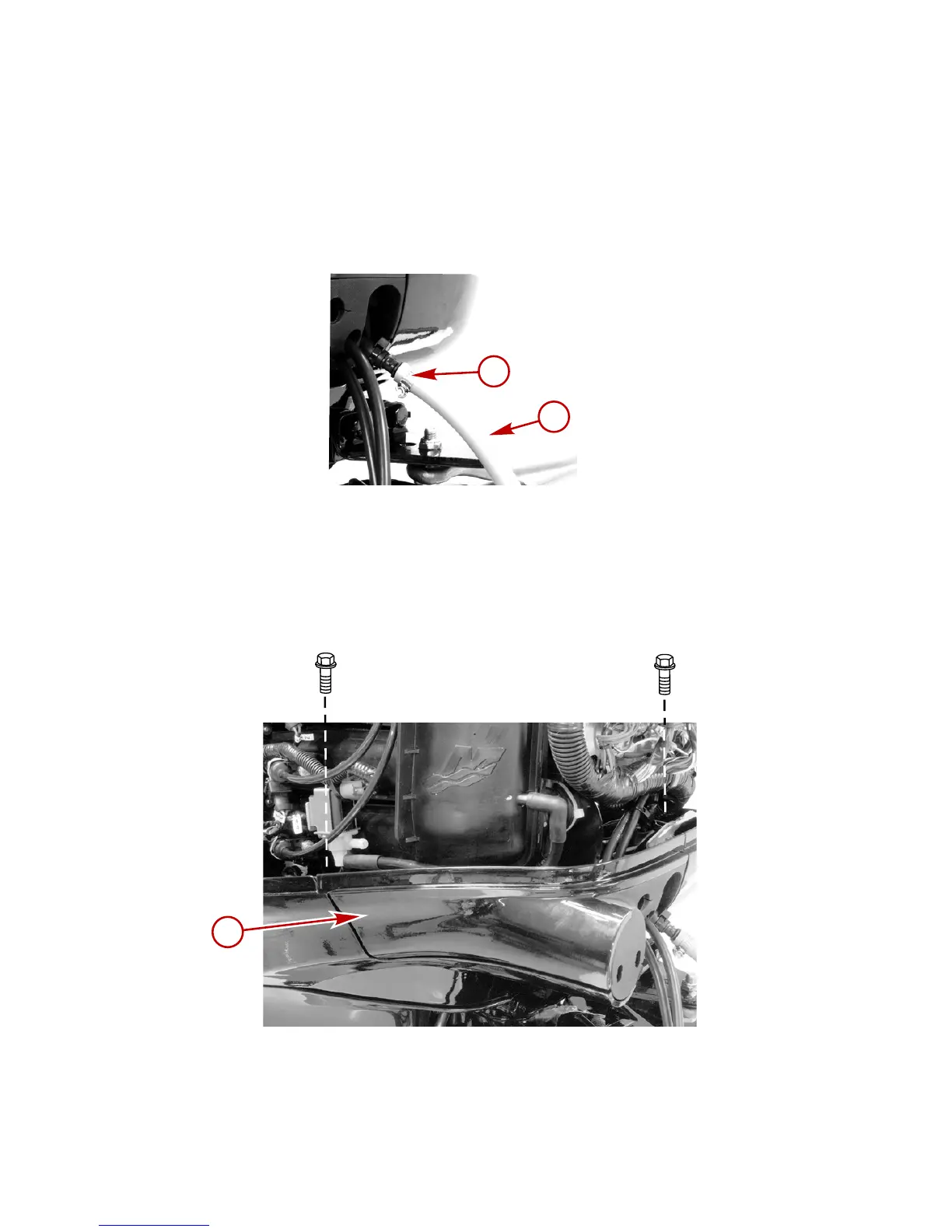

a - Hose clamp b - Remote fuel hose
Electrical Connections and Control Cable Installation
REMOTE WIRING HARNESS
Remove the access cover.
a
28505
a -
Access cover
Route the remote wiring harness through the rubber grommet.
