Mercury 40 4-Stroke User Manual

OUTBOARD INSTALLATION
77

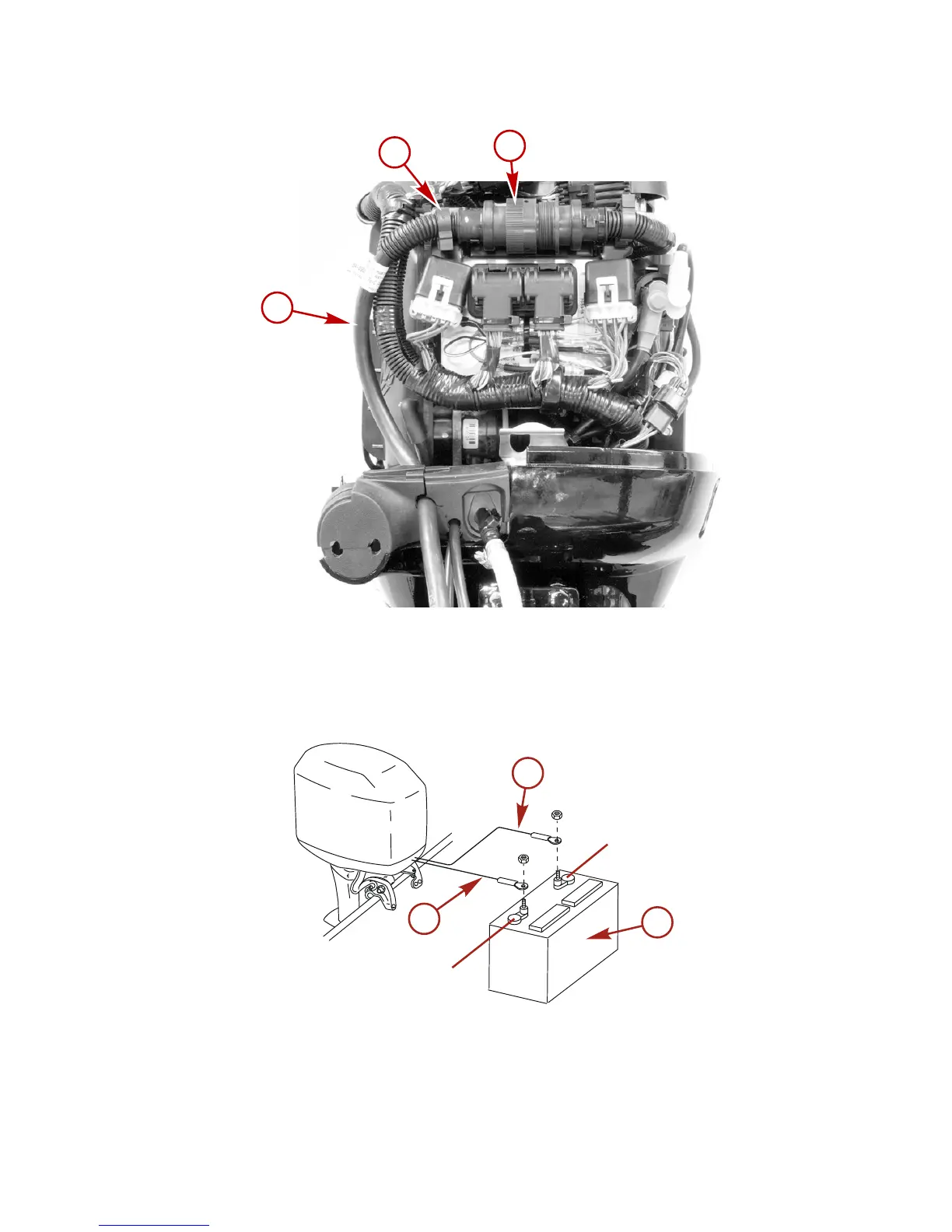

Connect the 14 pin connector to the engine harness and fasten the harness with the retainer.
a
b
c
28482
a - Remote wiring harness
b - Retainer
c - 14 pin connector
BATTERY CABLE CONNECTIONS
Single Outboard
(+)
(-)
b
a
c
15496
a -
Red sleeve - Positive (+)
b - Black sleeve - Negative (–)
c - Cranking battery

Mercury 40 4-Stroke Specifications

General

Engine Type	4-Stroke
Horsepower	40 hp
Cylinders	3
Fuel Induction System	Electronic Fuel Injection (EFI)
Starting	Electric
Displacement	747 cc
Shaft Length	20 in
Dry Weight	216 lbs
Steering	Remote
Alternator Amp	18 amp / 226 watt
Full Throttle RPM	5500 - 6000 RPM
