Mercury 40 4-Stroke - Installing Outboard

OUTBOARD INSTALLATION
71
INSTALLING OUTBOARD

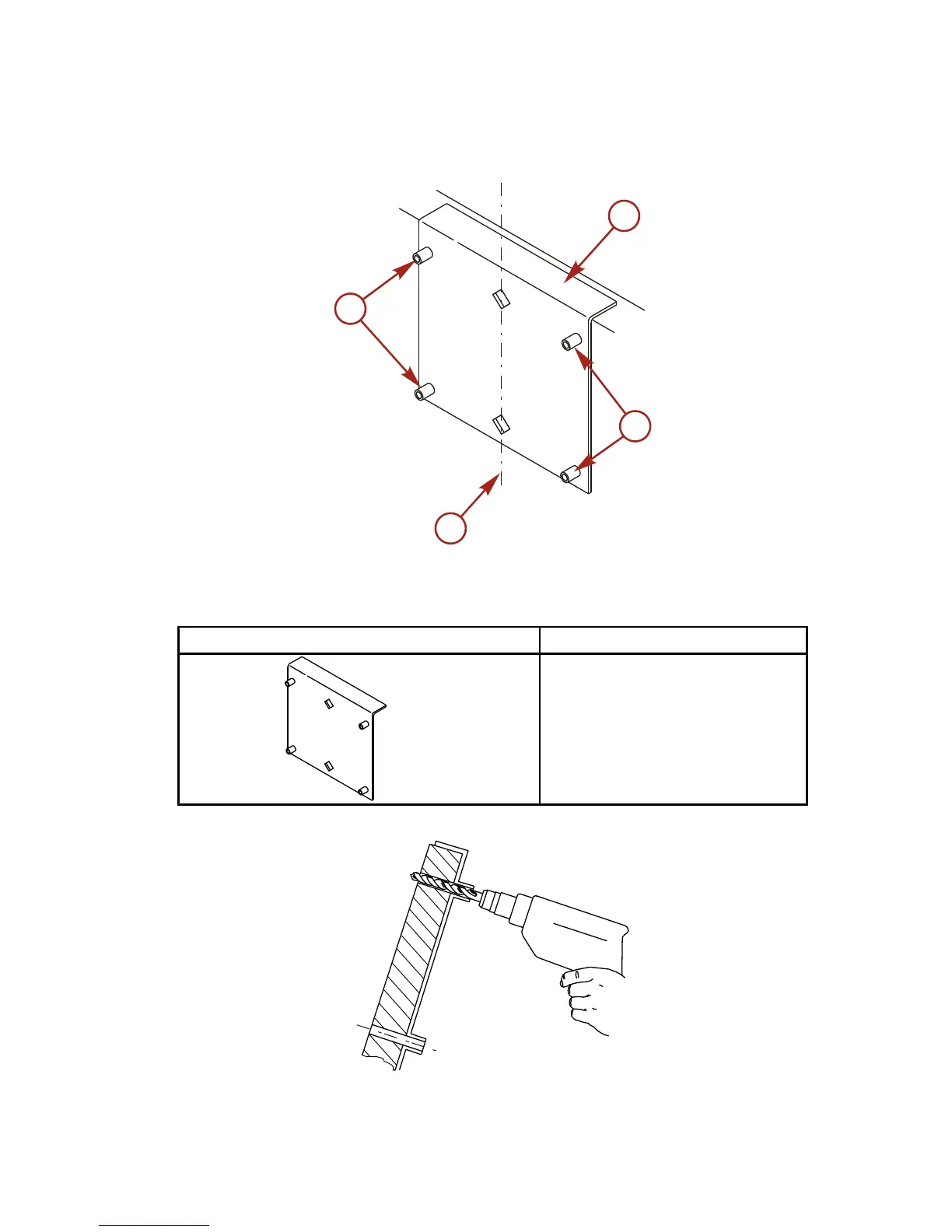

Drilling Outboard Mounting Holes
1. Mark four mounting holes on the transom using the transom drill fixture.
2757
a
a
b
c
a - Drill guide holes
b - Transom drilling fixture
c - Transom center line
Transom Drilling Fixture 91-98234A2
5489
Aids in engine installation by acting as a
template for engine mounting holes.
2. Drill four 13.5 mm (17/32 in.) mounting holes.
3973
