Mercury 40 4-Stroke User Manual

OPERATION
40

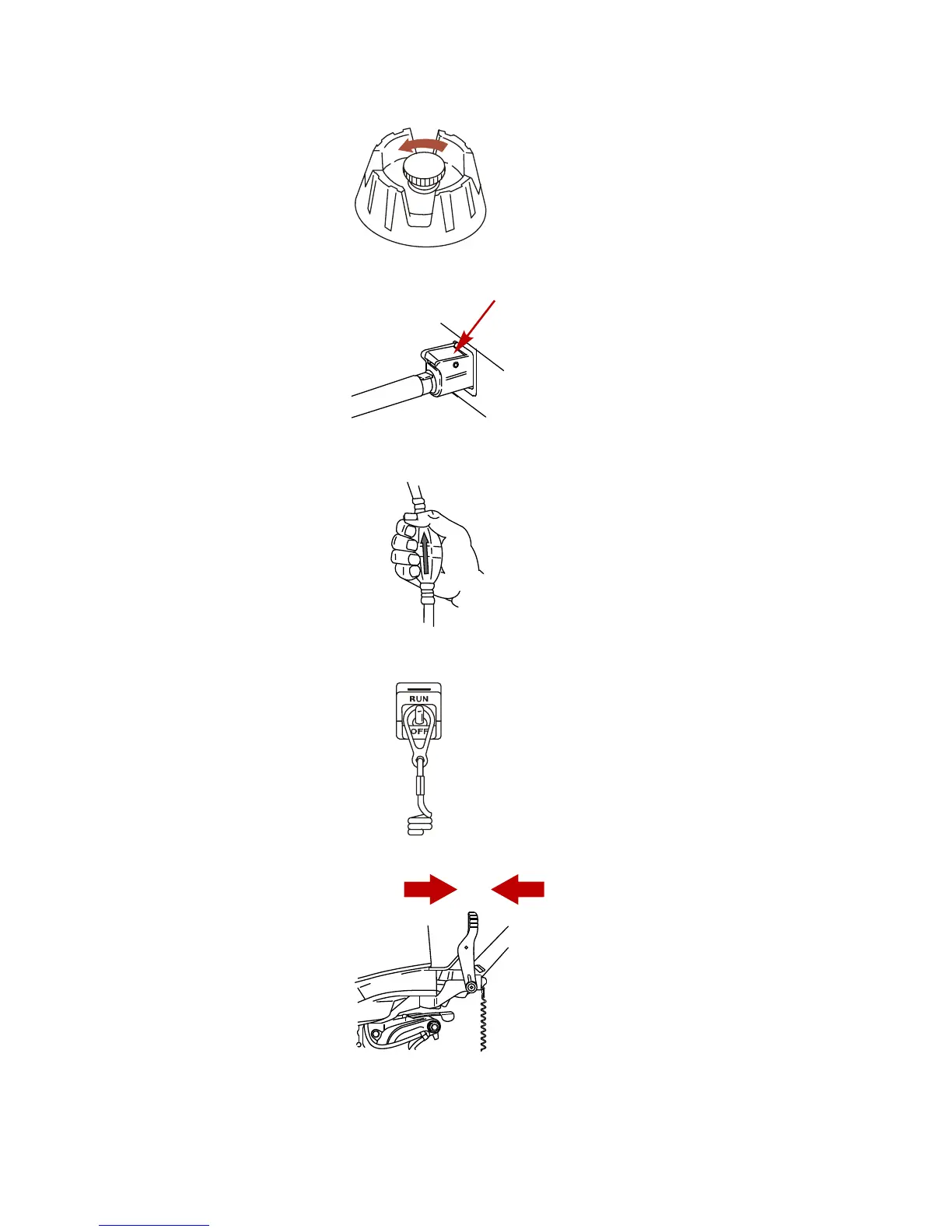

1. Open the fuel tank vent screw (in filler cap) on manual venting type fuel tanks.
19748
2. Connect the remote fuel line to the outboard. Make sure the connector is snapped into place.
28526
3. Position the fuel line primer bulb so the arrow on the side of the bulb is pointing up. Squeeze the
fuel line primer bulb several times until it feels firm.
27348
4. Set the lanyard stop switch to the "RUN" position. Refer to General Information - Lanyard Stop
Switch.
19791
5. Shift the outboard to the neutral ("N") position.
N
28522

Mercury 40 4-Stroke Specifications

General

Engine Type	4-Stroke
Horsepower	40 hp
Cylinders	3
Fuel Induction System	Electronic Fuel Injection (EFI)
Starting	Electric
Displacement	747 cc
Shaft Length	20 in
Dry Weight	216 lbs
Steering	Remote
Alternator Amp	18 amp / 226 watt
Full Throttle RPM	5500 - 6000 RPM
