FEATURES & CONTROLS
50

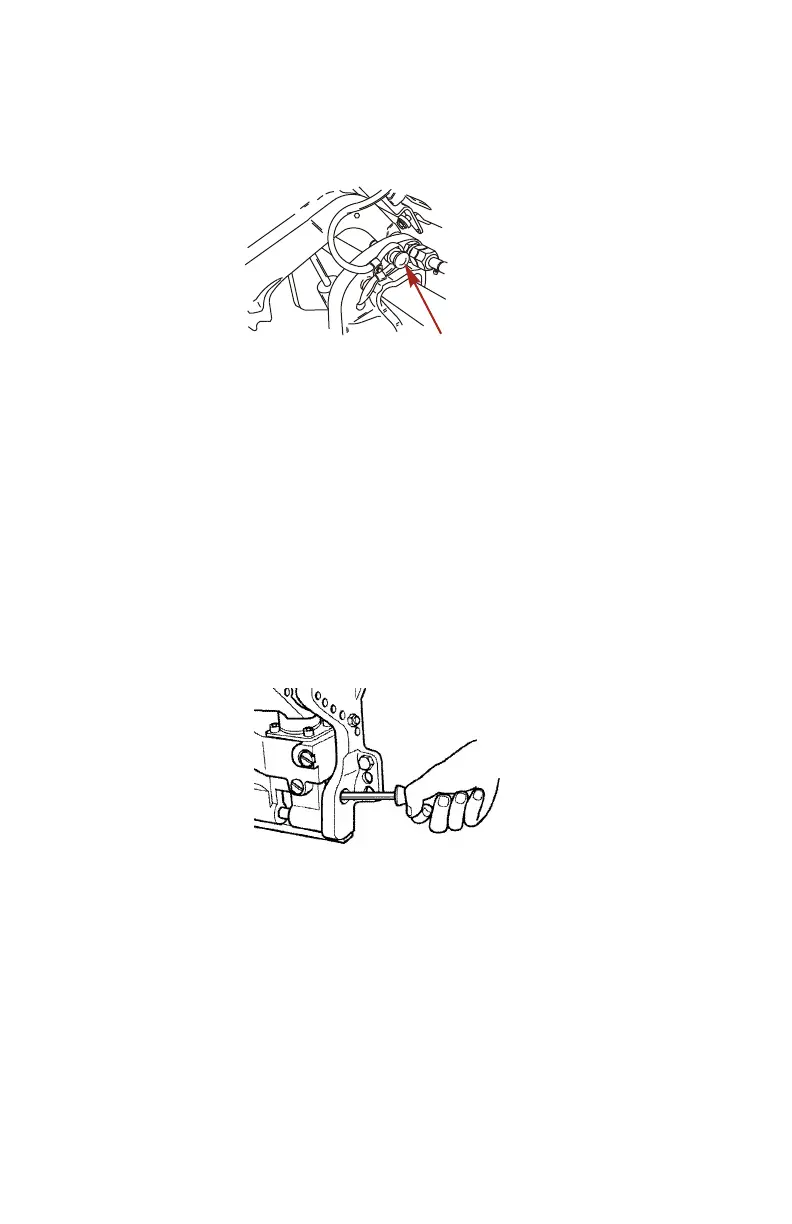

3. Disengage the tilt support pin, by raising the outboard off the
support pin and pulling out the support pin. Lower the
outboard.
27475
MANUAL TILTING
If the outboard cannot be tilted using the power trim/tilt switch, the
outboard can be manually tilted.
NOTE: The manual tilt release valve must be tightened before
operating the outboard to prevent the outboard from tilting up
during reverse operation.
1. Turn out the manual tilt release valve 3 turns
counterclockwise. This allows manual tilting of the outboard.
Tilt the outboard to the desired position and tighten the manual
tilt release valve.
27477

Mercury 40 Specifications

General

Horsepower	40 hp
Starting System	Electric
Steering	Remote
Fuel Induction System	EFI (Electronic Fuel Injection)
Shaft Length	20"
Full Throttle RPM Range	6000
