INSTALLATION – Continued

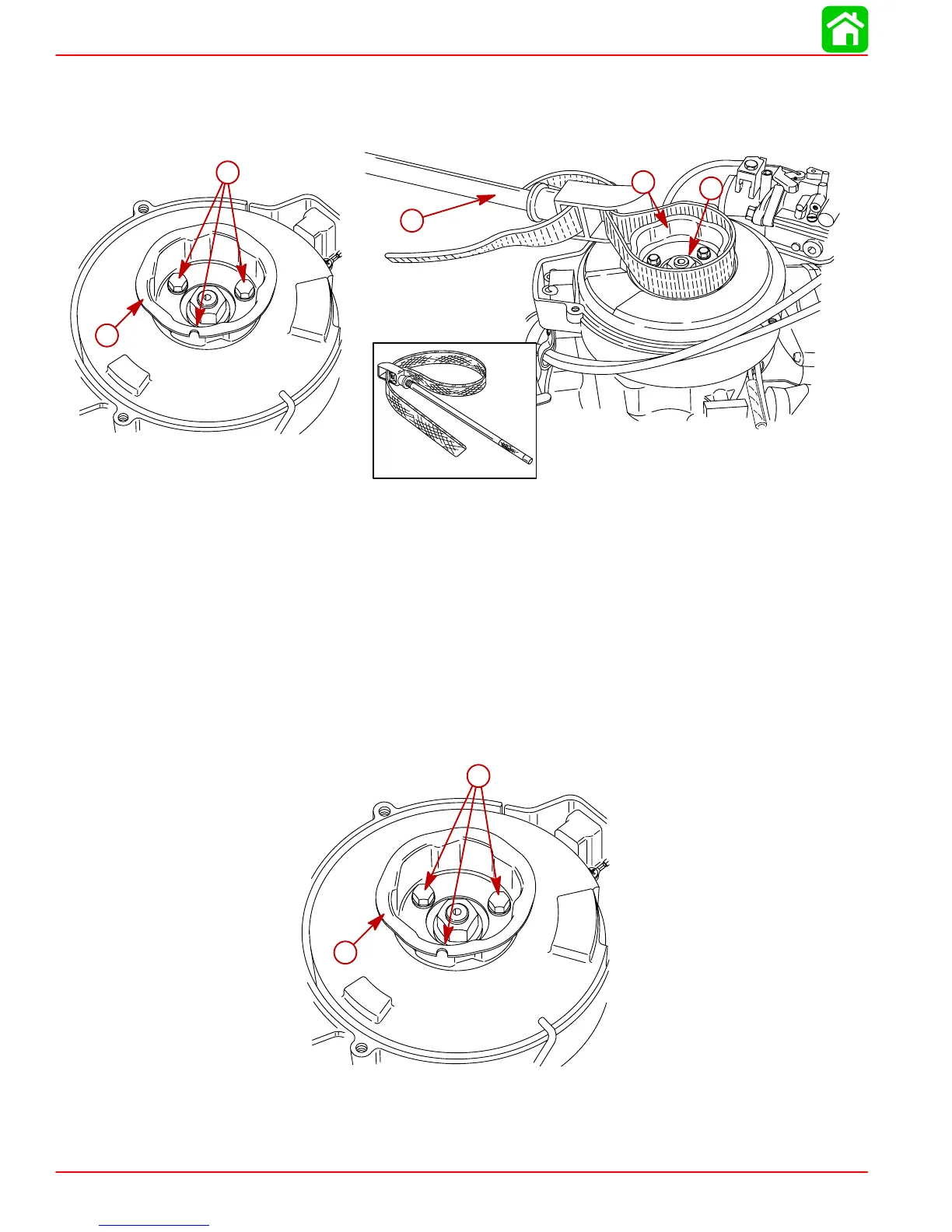

1. Install starter pulley and three bolts and lockwashers. Torque to 70 lb-in. (8 Nm).
2. Hold starter pulley with strap wrench. Torque nut to 40 lb-ft (54.0 Nm).
a
b
56278
91-24937A1
57523
c
d
e
a-Starter Pulley
b-Bolts/Lockwashers (3)
c-Starter Pulley
d-Strap Wrench
e-Nut
3. Reinstall rewind starter and start-in-gear protection link rod, as outlined in Section 8
“Rewind Starter”.
REMOVAL – FLYWHEEL HOLDER/PULLER METHOD
1. Remove rewind starter. Refer to Section 8.
2. Remove three bolts and starter pulley.
a
b
56278
a-Bolts (3)
b-Starter Pulley
