OUTBOARD INSTALLATION
eng 119
b. Shift the remote control into neutral. The propeller shaft
should turn freely without drag. If not, adjust the barrel
away from the cable end. Repeat steps a and b.
c. Shift the remote control into reverse while turning
propeller. The propeller shaft should be locked in gear. If
not, adjust the barrel away from the cable end. Repeat
steps a through c.

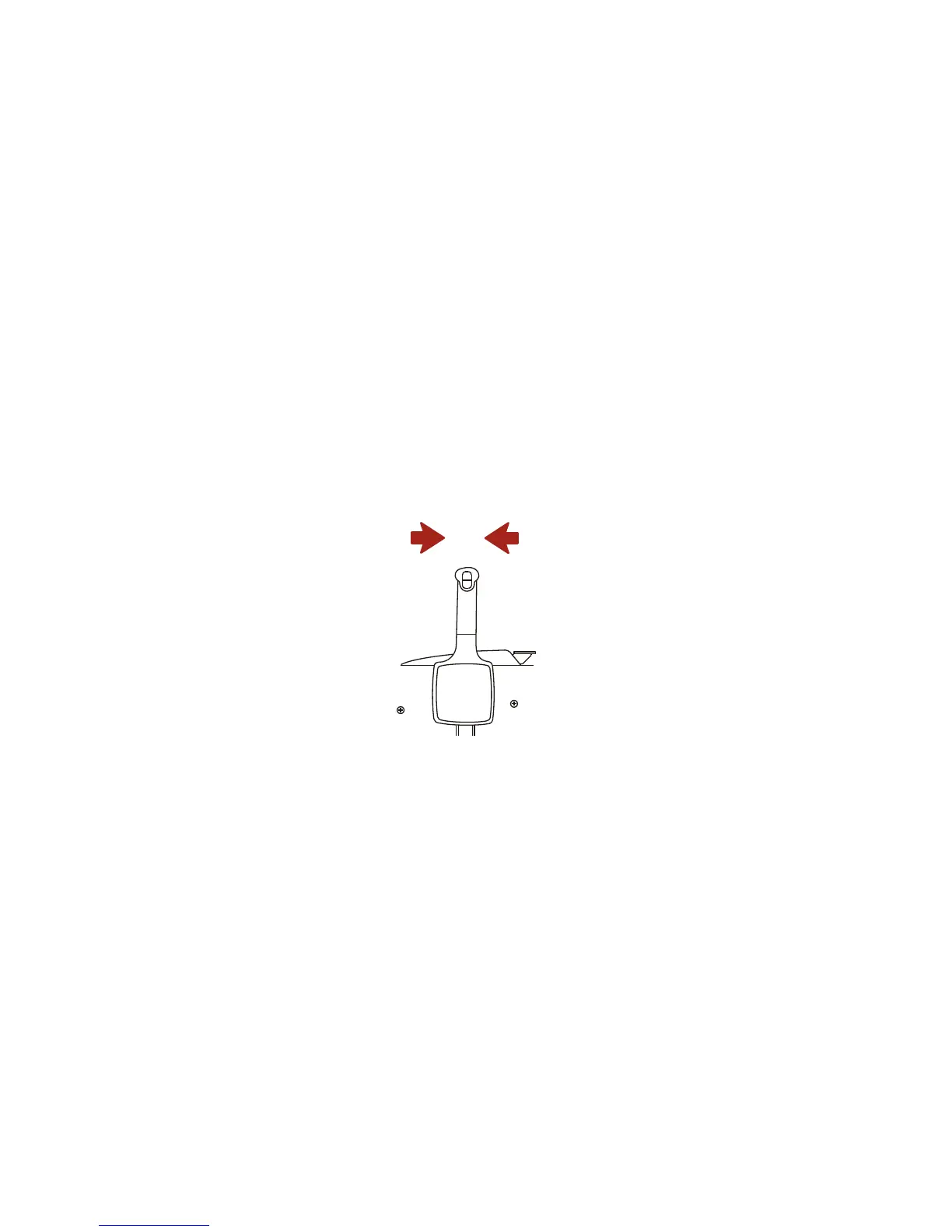

d. Shift the remote control back to neutral. The propeller
shaft should turn freely without drag. If not, adjust the
barrel closer to the cable end. Repeat steps a through d.
THROTTLE CABLE INSTALLATION
Install cables into the remote control following the instructions
provided with the remote control.
1. Position remote control into neutral.
2. Install the throttle cable to the throttle arm with a flat washer
and locknut. Tighten the locknut, then back off the locknut
1/4 turn.
3. Adjust the cable barrel so that the installed throttle cable will
hold the throttle arm against the idle stop.
4. Place the cable barrel into the barrel retainer.
