ENGINE INSTALLATION
113
IMPORTANT: Make sure that the throttle cable end guide does
not contact the remote wiring harness when the throttle cable is
at full throttle position. If necessary, reposition and clamp the
remote wiring harness.

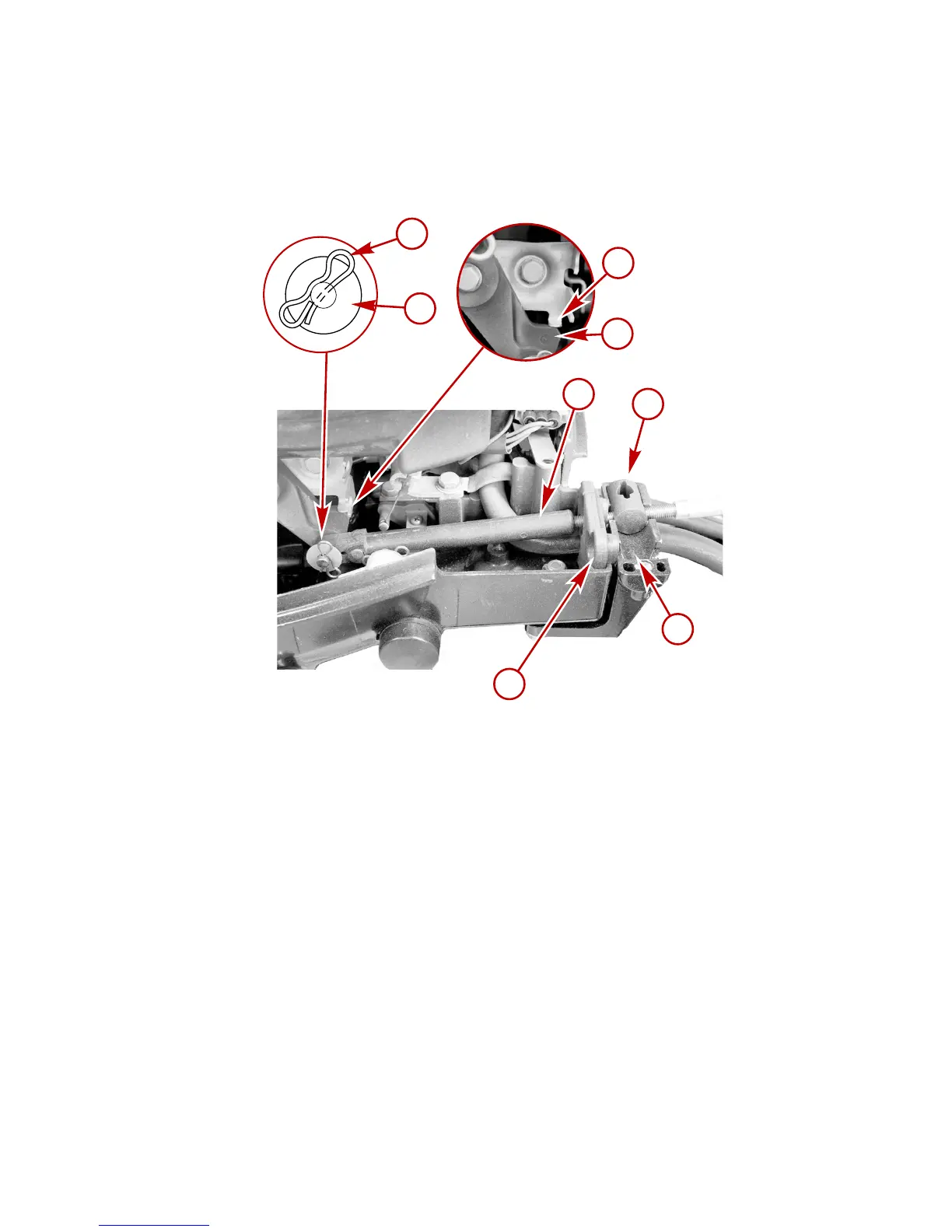

a - Cotter pin retainer
b - Flat washer
c - Full Throttle stop
d - Throttle lever
e - Cable barrel
f - Throttle cable end guide
g - Barrel receptacle
h - Rubber grommet
SHIFT CABLE INSTALLATION
Install the cables into the remote control following the instructions
provided with the remote control.
1. Locate the center point of the slack or lost motion that exists
in the shift cable as follows:
a. Move the remote control handle from neutral into forward
and advance the handle to full speed position. Slowly return
the handle back to the neutral. Place a mark ("a") on the
cable next to the end guide.
