Mercury 80 Owner's Manual

MAINTENANCE
38
20739

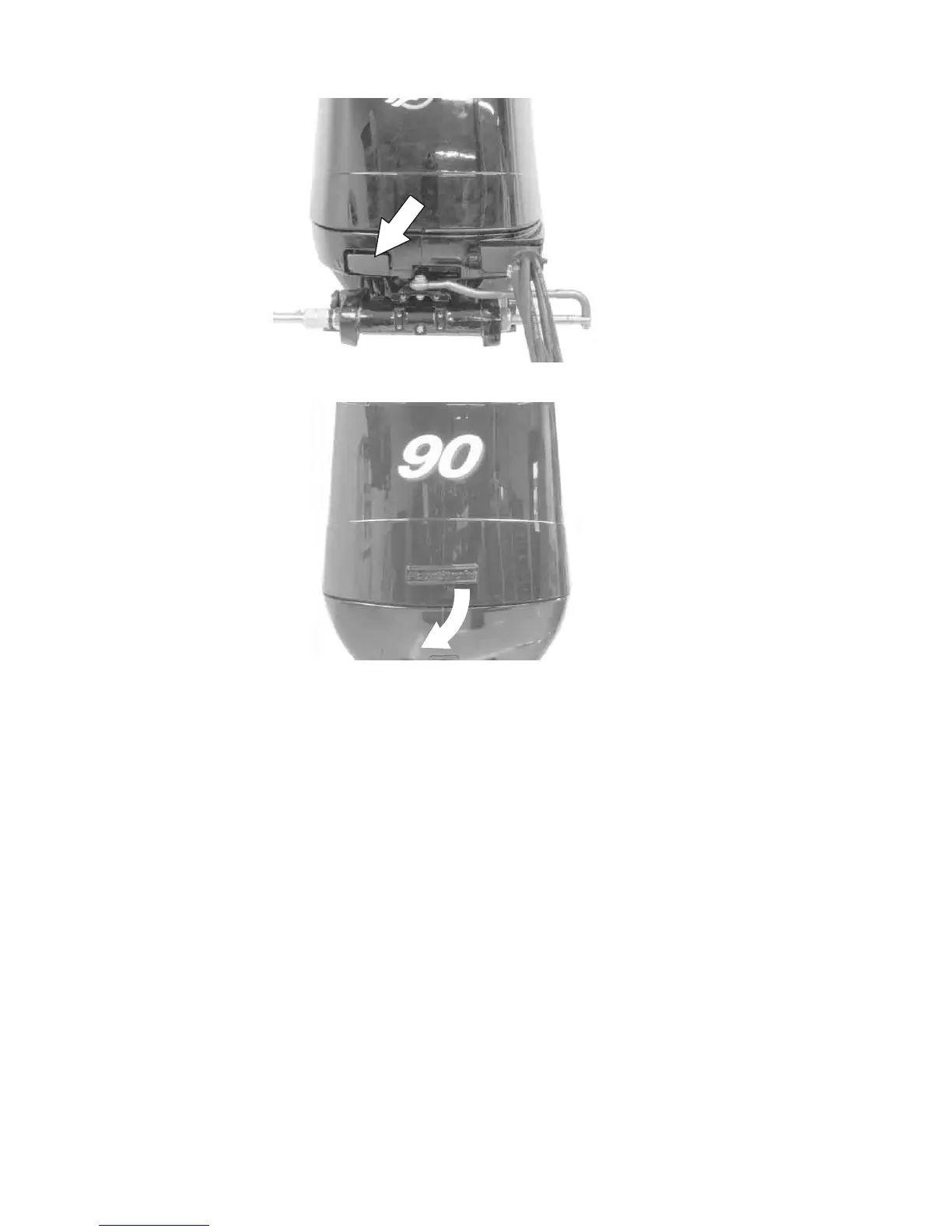

2. Pull down the rear cowl latch. Remove the top cowl.
20741
INSTALLATION
1. Lower the top cowl into position over the engine.
2. Pull up the rear cowl latch to lock down the rear. Push in the front cowl latch to lock down the front.
Flywheel Cover Removal and Installation
REMOVAL
Lift the cover off the rear mounting pin and slide the cover forward to release the cover from the front mounting
pins.

Mercury 80 Specifications

General

Steering	Remote
Shaft Length	20 in (508 mm)
Gear Ratio	2.07:1
Horsepower	80 hp
Full Throttle RPM Range	5000-6000 RPM
Bore x Stroke	3.15 x 3.15 in (80 x 80 mm)
