Mercury 80 Owner's Manual

OUTBOARD INSTALLATION
77
a
b
d
f
e
20824
c

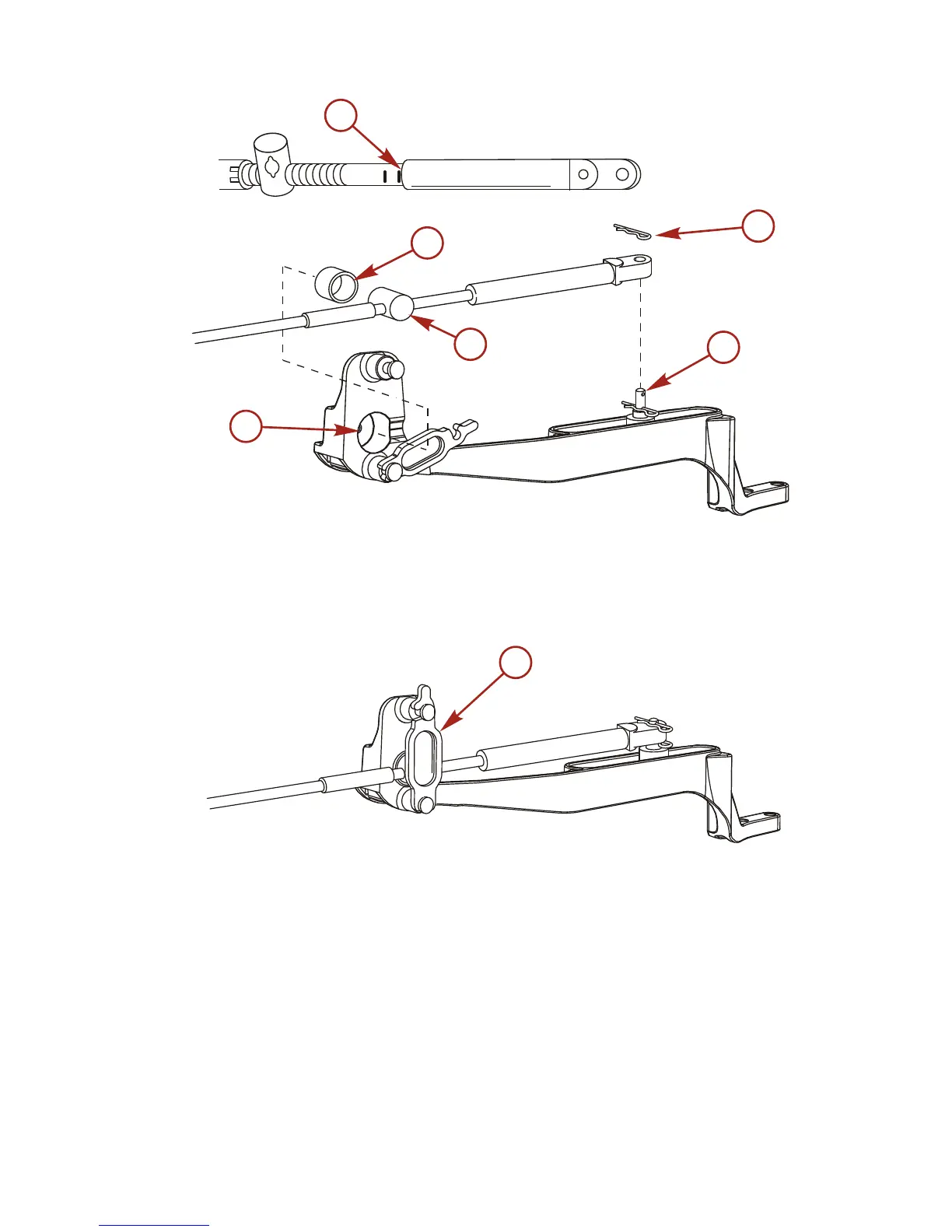

a - Center mark
b - Barrel insert
c - Cable barrel
d - Hairpin retainer
e - Anchor pin
f - Barrel holder
8. Lock barrel in place with cable latch.
a
20825
a - Cable latch
9. Check shift cable adjustments as follows:
a. Shift remote control into forward. The propeller shaft should be locked in gear. If not, adjust the barrel
closer to the cable end.
b. Shift remote control into neutral. The propeller shaft should turn freely without drag. If not, adjust the
barrel away from the cable end. Repeat steps a and b.
c. Shift remote control into reverse while turning propeller. The propeller shaft should be locked in gear.
If not, adjust the barrel away from the cable end. Repeat steps a through c.
d. Shift remote control back to neutral. The propeller shaft should turn freely without drag. If not, adjust
the barrel closer to the cable end. Repeat steps a through d.
10. If the throttle cable is already installed, place the high pressure fuel hose back into the hose retainers.
Reinstall the access cover.

Mercury 80 Specifications

General

Steering	Remote
Shaft Length	20 in (508 mm)
Gear Ratio	2.07:1
Horsepower	80 hp
Full Throttle RPM Range	5000-6000 RPM
Bore x Stroke	3.15 x 3.15 in (80 x 80 mm)
