ENGINE INSTALLATION
eng 135
IMPORTANT: Make sure that the throttle cable end guide does
not contact the remote wiring harness when the throttle cable is
at full throttle position. If necessary, reposition and clamp the
remote wiring harness.

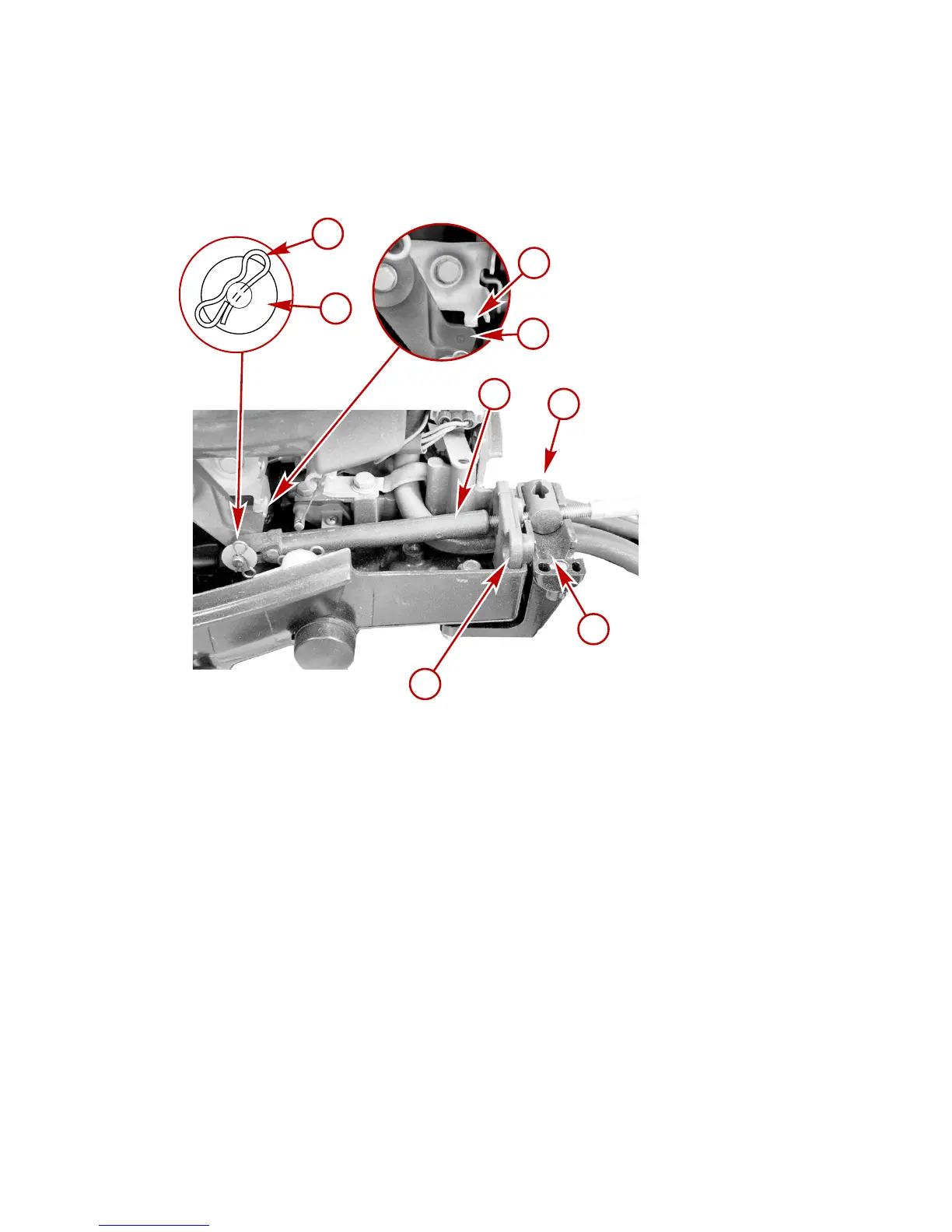

a - Cotter pin retainer
b - Flat washer
c - Full Throttle stop
d - Throttle lever
e - Cable barrel
f - Throttle cable end guide
g - Barrel receptacle
h - Rubber grommet
SHIFT CABLE INSTALLATION
Install the cables into the remote control following the
instructions provided with the remote control.
1. Locate the center point of the slack or lost motion that exists
in the shift cable as follows:
c
e
f
h
d
28079
g
a
b

Mercury 9.9 Specifications

General

Cylinders	2
Fuel Tank	External
Full Throttle RPM Range	5000 - 6000 RPM
Fuel Induction System	Carbureted
Alternator Amp	6 amp
Horsepower	9.9 hp
Starting	Manual
Shaft Length	15 in, 20 in
Steering	Tiller
