Maintenance
CD776
Power Package Views

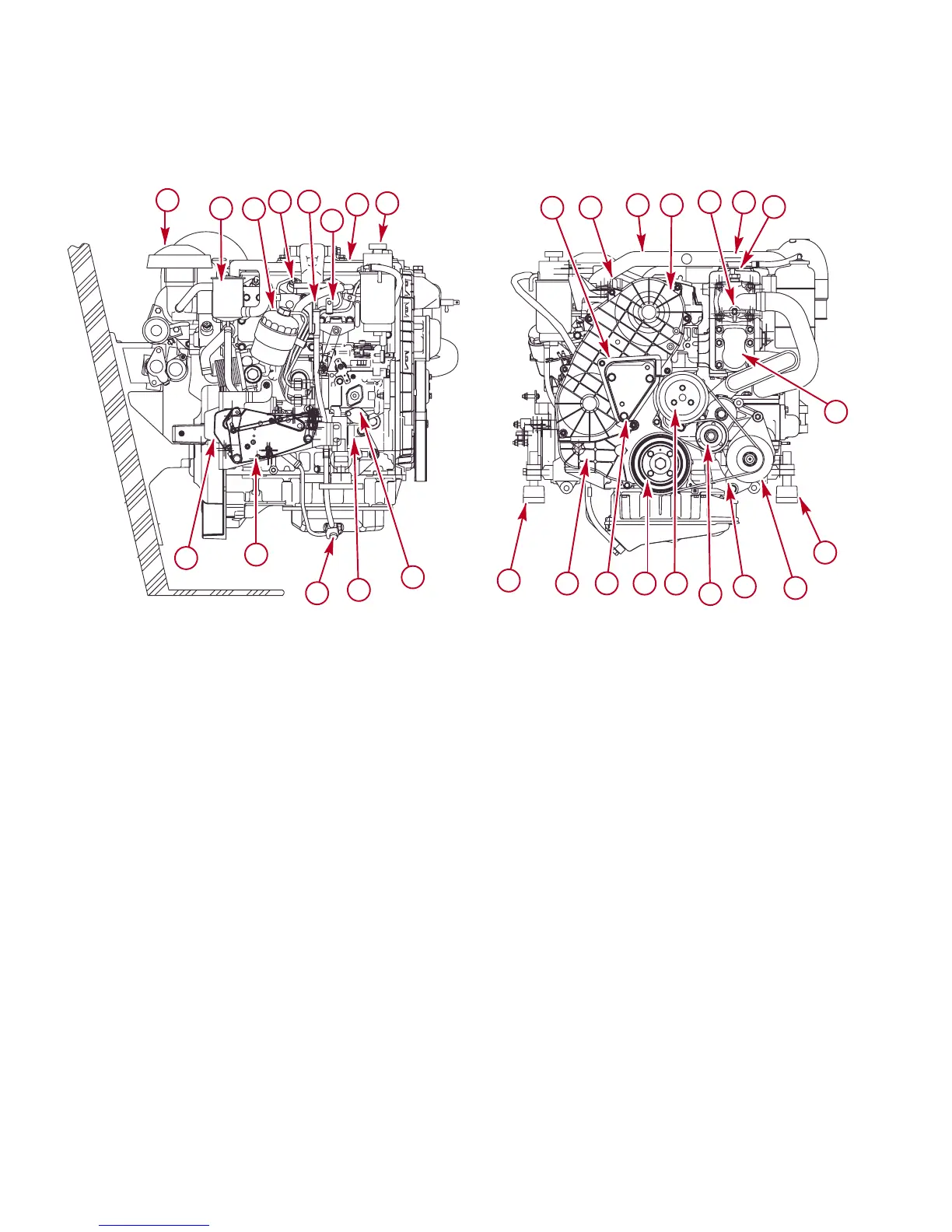

FRONT AND STARBOARD SIDE VIEWS
77121
3
4
7
9
12
13
14
15
18
8
10
11
1
2
5
6
16
17
19
20
21
23
24
25
2627
28
29
22
22
1-Air cleaner
2-Oil Separator
3-Oil Filter
4-Nozzle Dust Cover
5-Oil Dipstick
6-Injection Pipe
7-Camshaft Cover
8-Primer Pump / Water Separating Fuel Filter
9-Injection Pump
10 - Injection Pump Bracket
11 - Oil Drain Plug
12 - Starter Motor
13 - Shift Plate Assembly
14 - Engine Plate
15 - Engine Lifting Eye
16 - Intercooler To Intake Manifold Air Duct
17 - Timing Cover, Upper
18 - Seawater Drain Plug
19 - Pressure Cap
20 - Sacrificial Anode
21 - Thermostat Housing
22 - Engine Mount
23 - Alternator
24 - Serpentine Belt
25 - Automatic Tensioner Pulley
26 - Engine Water Circulating Pump Pulley
27 - Crankshaft Pulley
28 - Engine Plate Fixing bolt
29 - Timing Cover, Lower
