CD777

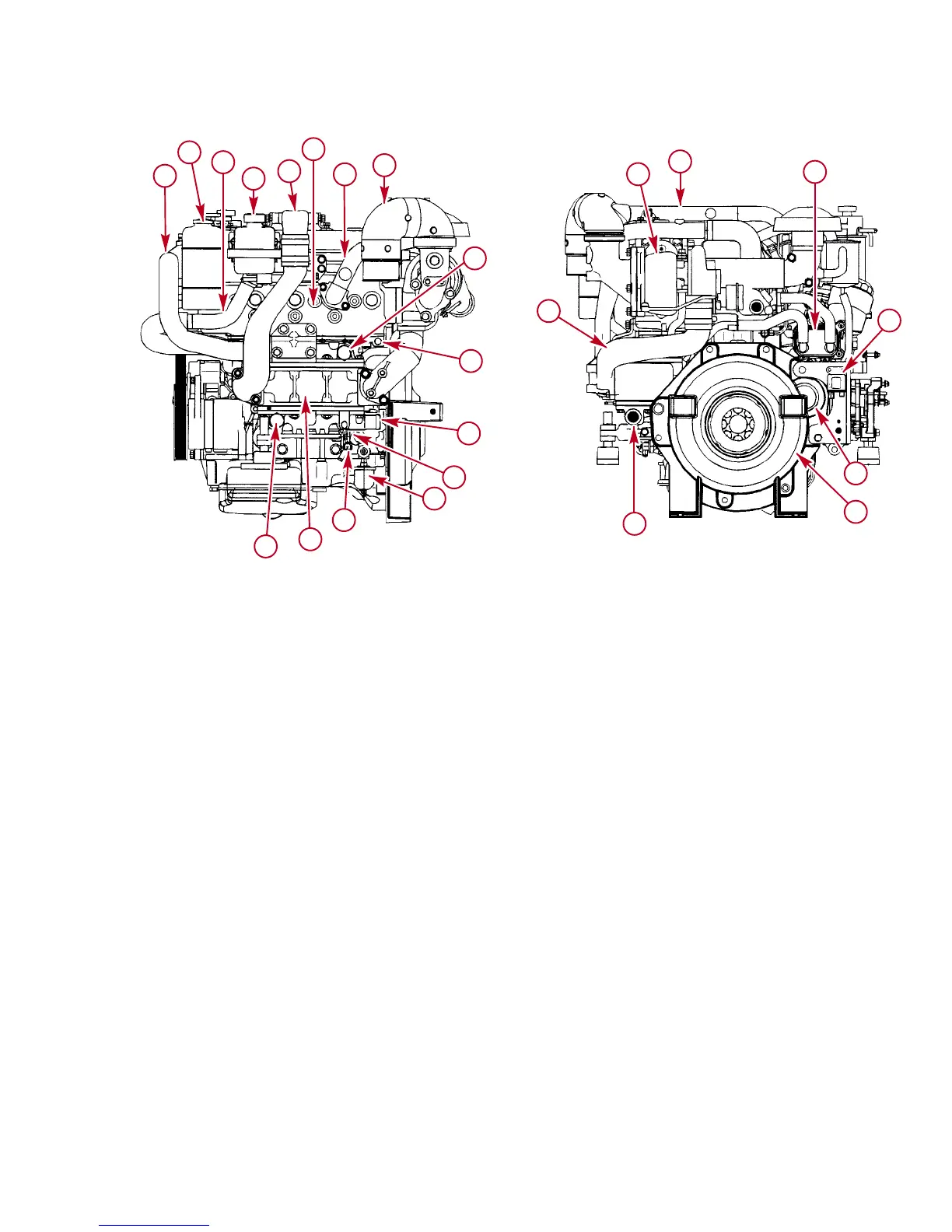

PORT SIDE AND REAR VIEWS
77122
21
20
1
2
3
4
5
6
7
8
12
13
18
17
22
9
10
21
11
14
15
15
16
19
1-Hose, Engine To Heat Exchanger
2-Coolant Recovery Bottle
3-Hose
4-Gear Lube Monitor Bottle
5-Heat Exchanger
6-Heat Exchanger Coolant Pipe
7-Exhaust Elbow
8-Coolant Drain Plug
9-Sacrificial Anode
10 - Seawater Drain Plug
11 - Oil Pressure Gauge Sending Unit
12 - Engine Coolant Drain Fitting
13 - Intercooler
14 - Sacrificial Anode
15 - Intercooler To Intake Manifold Air Duct
16 - Turbocharger
17 - Starter Relay
18 - Engine Oil Cooler
19 - Starter Motor
20 - Flywheel Housing
21 - Seawater Inlet Fitting
22 - Turbocharger To Intercooler Air Duct
