MCM MODELS - BRAVO AND BLACKHAWK DRIVES WITH DRIVESHAFT EXTENSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2B-11

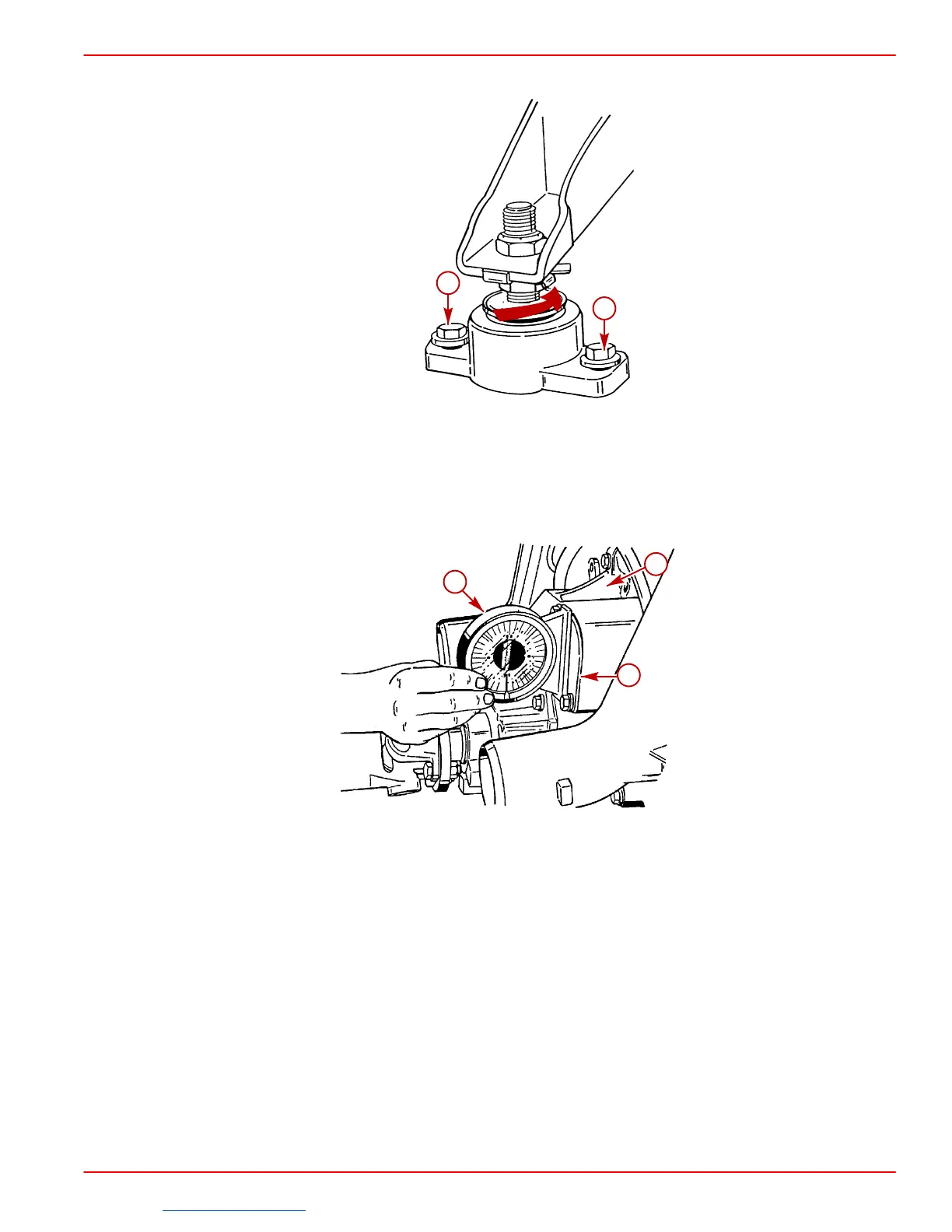

10. After engine has been aligned correctly, fasten front and rear engine mounts to stringers.
Tighten securely.
72922
a
a
Typical Mounting Shown
a-Mounting Bolts
11. Position protractor on starter housing cover plate, as shown. Now, raise or lower front
engine mount adjusting nuts as required so that protractor needle reads exactly the
same number of degrees as that recorded in Step 1.
72593
a
b
c
a-Flywheel Housing
b-Starter Housing Cover Plate
c-Protractor
12. Position protractor on drive shaft and recheck angle. Angle should be the same as that
recorded in Step 6. If not, raise or lower all four engine mount adjustment nuts an equal
amount until correct angle is reached.
