MCM MODELS - BRAVO AND BLACKHAWK DRIVES WITH DRIVESHAFT EXTENSION

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 2B-19

7. Reinstall flame arrestor and tighten screws securely. Connect crankcase vent hose to

flame arrestor as shown.

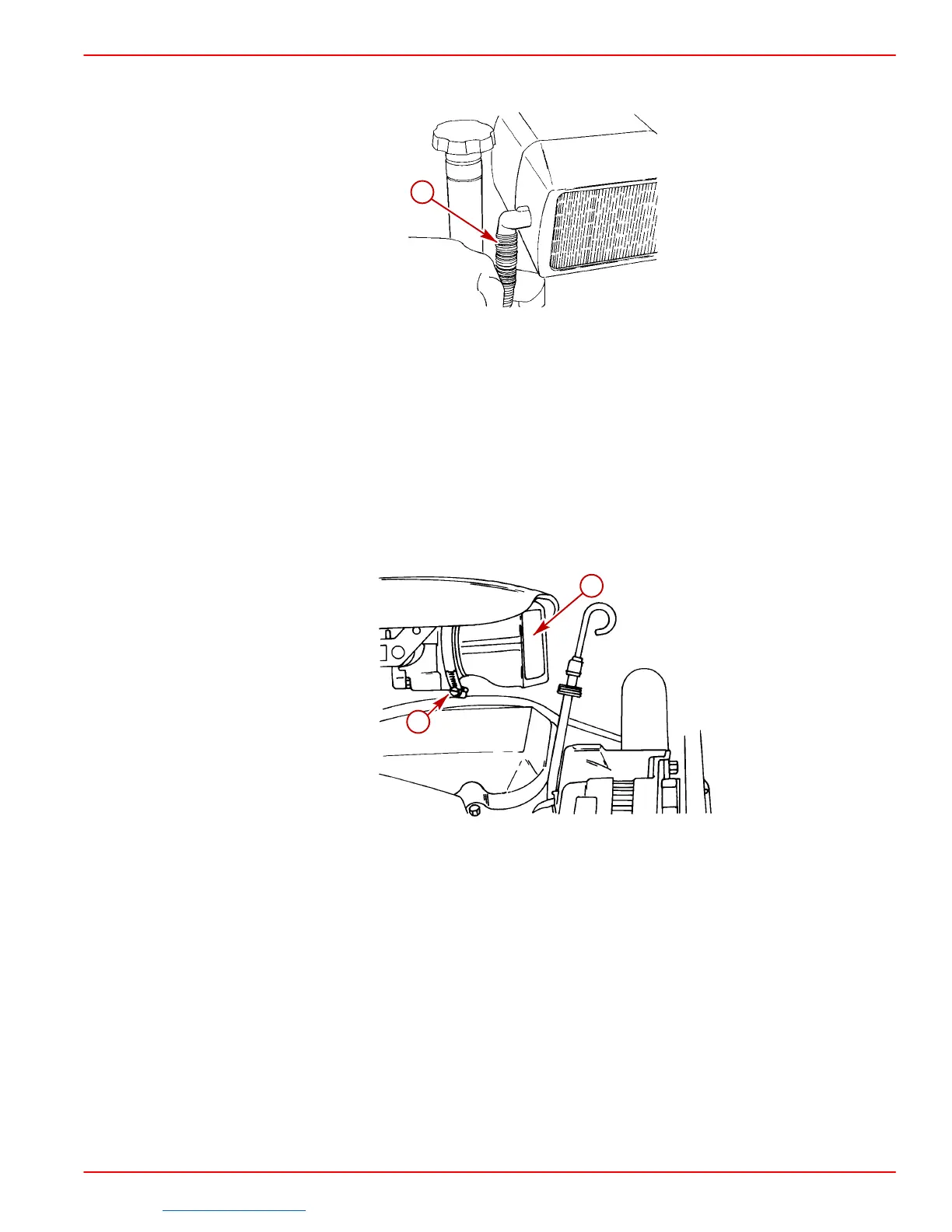

75115

a-Crankcase Vent Hose

7.4L MPI MODELS

1. Place remote control handle(s) in neutral idle position.

2. Remove port side engine cover.

IMPORTANT: Be sure that cable is routed to avoid sharp bends and/or contact with

moving parts. DO NOT fasten any items to throttle cable. Outer cable must be free to

move when cable is actuated.

3. Remove flame arrestor.

75447

a-Flame Arrestor

b-Clamp
