MIE MODELS - VELVET DRIVE TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2C-19
11. Reattach nut and washer to cable barrel stud. Tighten until contact. Tighten securely,
but DO NOT OVERTIGHTEN.
50947
a
b
c
d
e
f
g
50947
a
b
c
d
e
f
g

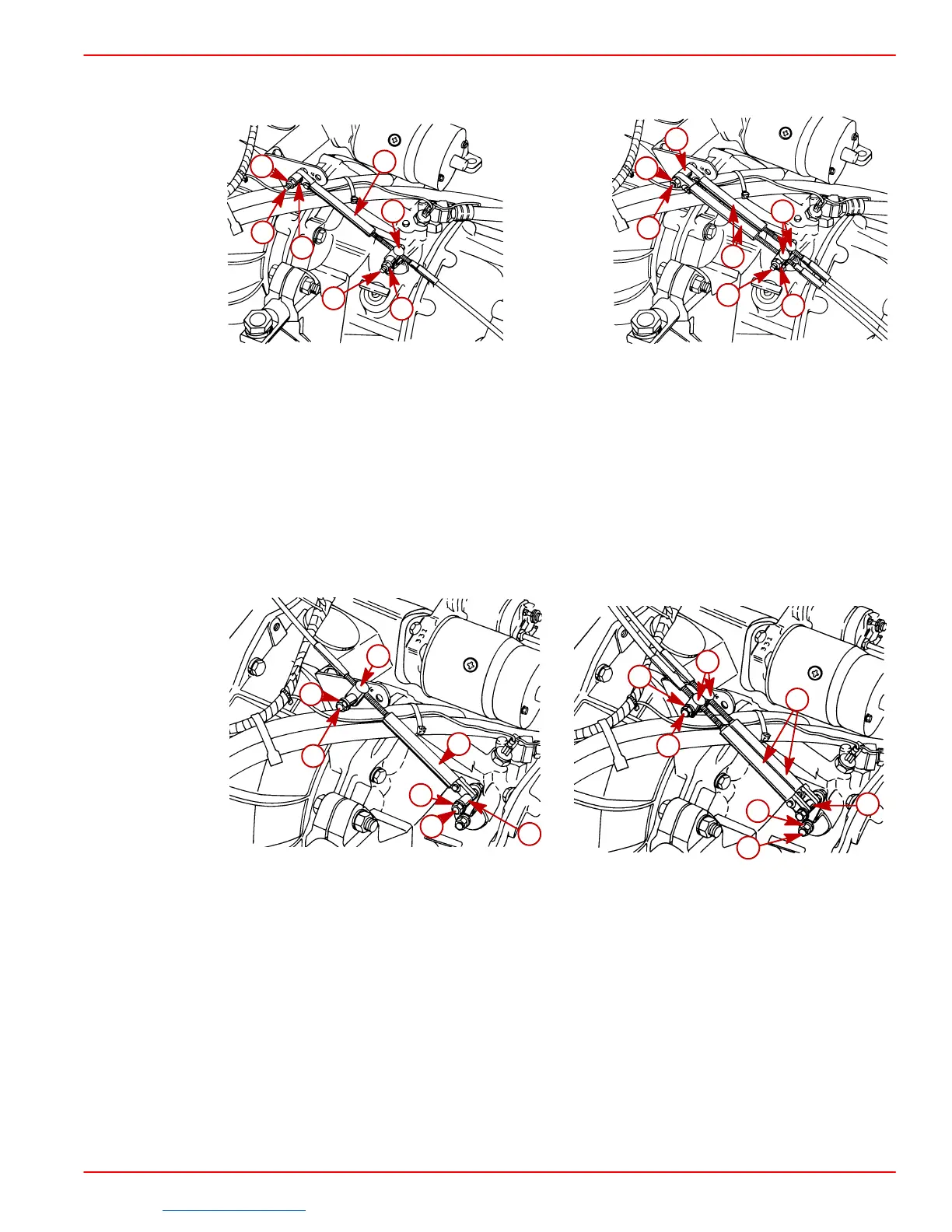

Rear Entry Single Station Rear Entry Dual Station Installation
Installation In-Line And Remote V-Drive In-Line And V-Drive
a-Cable End Guide
b-Cable Barrel
c-Cable Barrel Stud
d-Elastic Stop Nut and Washer
e-Spacer
f-Cable End Guide Stud
g-Elastic Stop Nut and Washer
50946
a
b
c
d
e
g
f
50946
a
b
c
d
e
f
g
Front Entry Single Station Front Entry Dual Station
Installation In-Line And V-Drive Installation In-Line And V-Drive
a-Cable End Guide
b-Cable Barrel
c-Cable Barrel Stud
d-Elastic Stop Nut and Washer
e-Spacer
f-Cable End Guide Stud
g-Elastic Stop Nut and Washer
