Mercury MerCruiser MCM 454 Mag MPI User Manual

MIE MODELS - VELVET DRIVE TRANSMISSION SERVICE MANUAL NUMBER 23
Page 2C-24 90-861326--1 MARCH 1999
k. Install nut and washer to cable barrel stud. Tighten until contacts. Tighten securely,
but DO NOT OVERTIGHTEN.
71780
71972
a
b
b
f
c
g
d
a
b
c
g
c
b
d
e
f

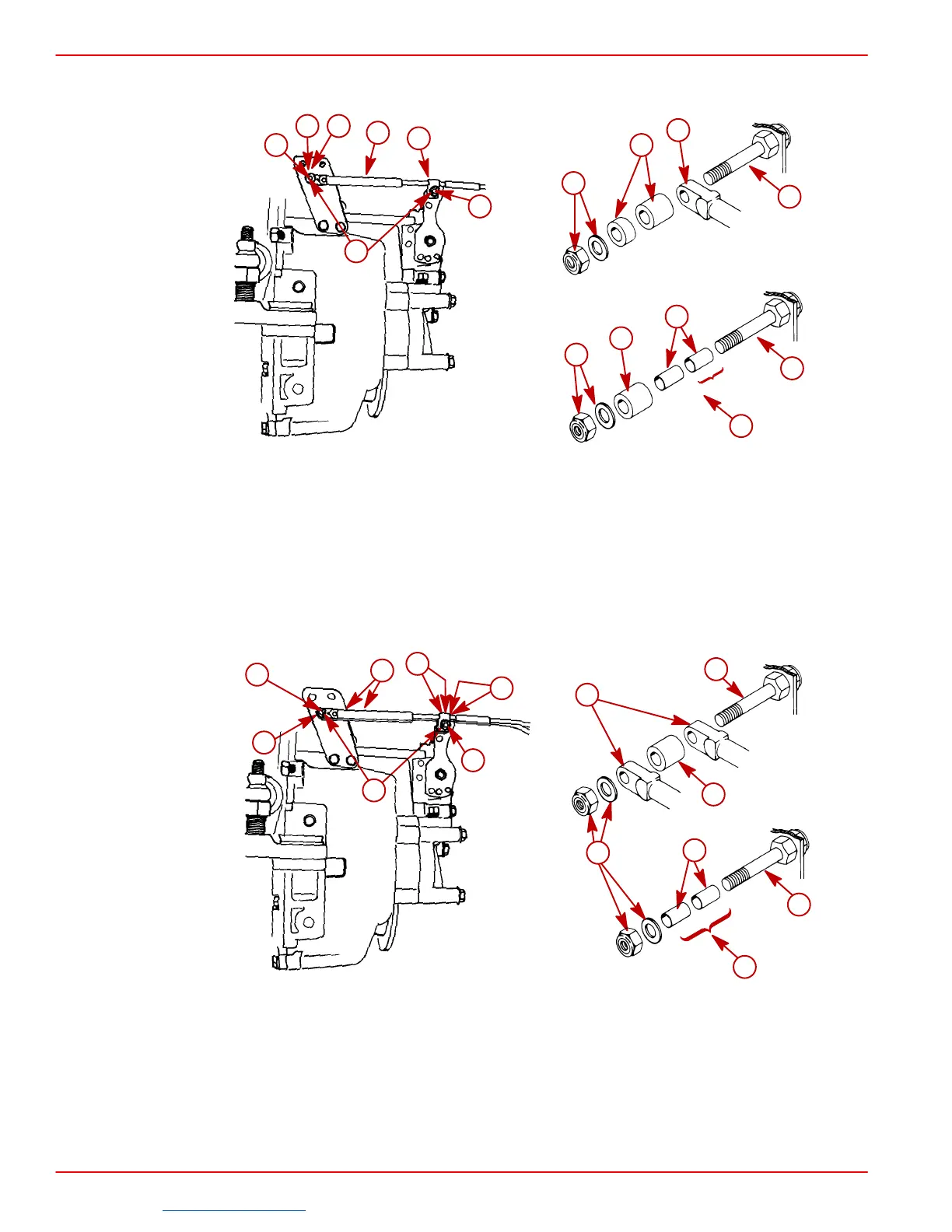

Typical Single Cable Installation - Rear Approach
a-Cable End Guide
b-Spacer (As Required)
c-Elastic Stop Nut And Washer
d-Bushing(s)
e-Cable Barrel(s) [Located Over Bushings - Position Indicated In Lower Drawing]
f-Cable Barrel Stud
g-Cable End Guide Stud
71897
50073
a
b
c
d
f
e
g
a
a
b
c
d
e
f
g
Typical Dual Cable Installation - Rear Approach
a-Cable End Guide
b-Spacer (As Required)
c-Elastic Stop Nut and Washer
d-Bushing(s)
e-Cable Barrel(s) [Located Over Bushings - Position Indicated In Lower Drawing]
f-Cable Barrel Stud
g-Cable End Guide Stud
