STARTING SYSTEM

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 4A-39

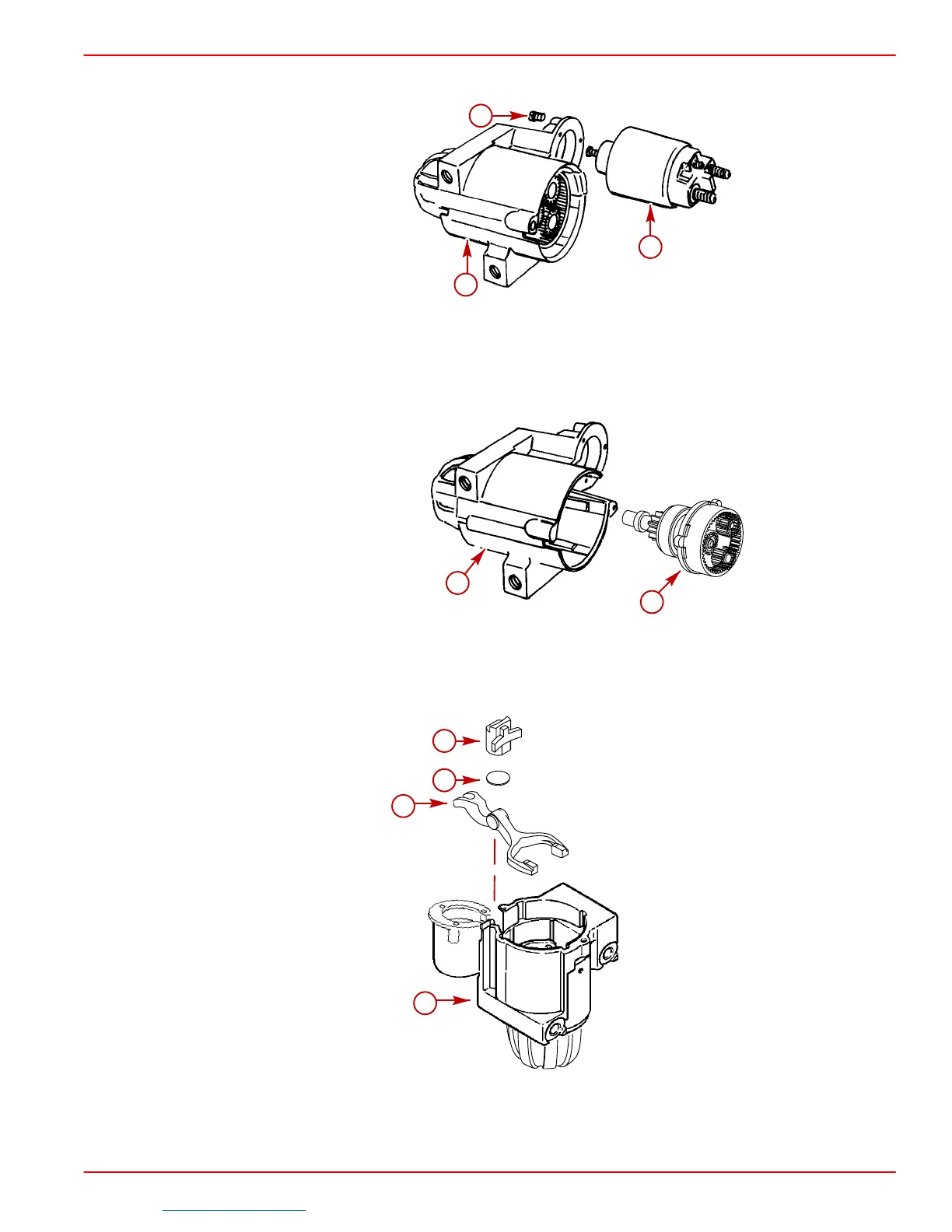

7. Remove the three screws retaining the solenoid. Remove solenoid from drive housing.

74036

a-Drive Housing

b-Solenoid

c-Screws (3)

8. Remove drive and associated parts from drive housing.

74035

75821

a-Drive Housing

b-Drive

9. Remove solenoid arm, metal disc and rubber grommet from the drive housing.

75821

a-Rubber Grommet

b-Metal Disc

c-Solenoid Arm

d-Drive Housing
