Mercury MerCruiser MCM 454 Mag MPI

HURTH V-DRIVE TRANSMSSION SERVICE MANUAL NUMBER 23
Page 8D-8 90-861326--1 MARCH 1999
72957
50229
a
b
f
b
c
d
e
g
h

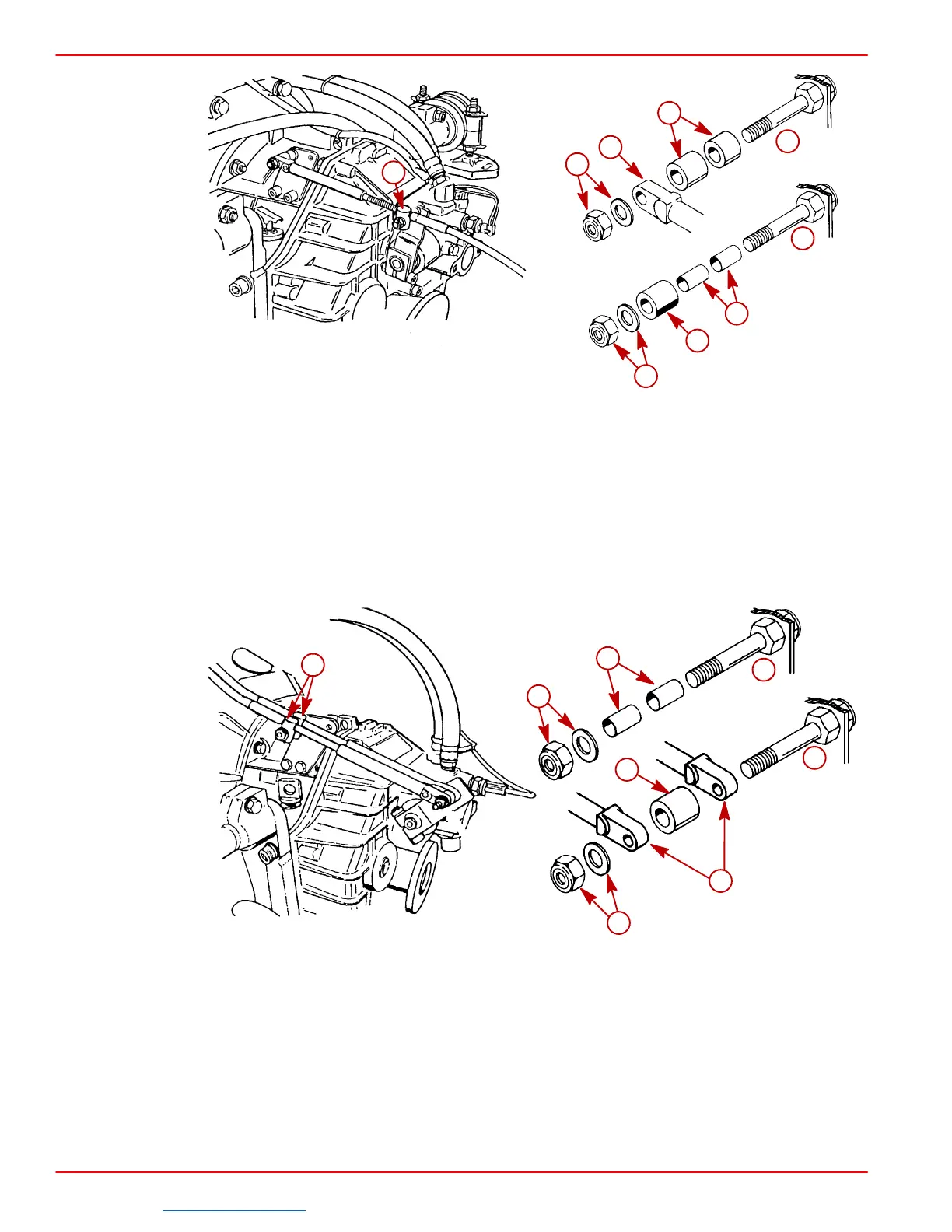

Typical Single Cable - Rear Approach
a-Cable End Guide
b-Locknut And Washer (Tighten Until Bottoms Out, Then Loosen 1/2 Turn)
c-Spacer (Fits Over Bushings)
d-Bushing
e-Cable Barrel
f-Cable Barrel Stud
g-Cable End Guide Stud
72956
71211
e
b
b
d
a
c
g
h
Typical Dual Cable - Forward Approach
a-Cable End Guide
a-Cable End Guide
b-Locknut And Washer (Tighten Until Bottoms Out, Then Loosen 1/2 Turn)
c-Spacer (Fits Over Bushings)
d-Bushing
e-Cable Barrel
f-Spacers (Fits Over Stud)
g-Cable Barrel Stud
h-Cable End Guide Stud
