HURTH V-DRIVE TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 8D-11
Draining Transmission
1. Clean the exterior of transmission before disassembly.
NOTE: Later model Hurth transmissions will be equipped with an allen head socket screw
on the oil filter cover.
2. Remove oil filter from housing by turning (counterclockwise) and pulling at the same
time.

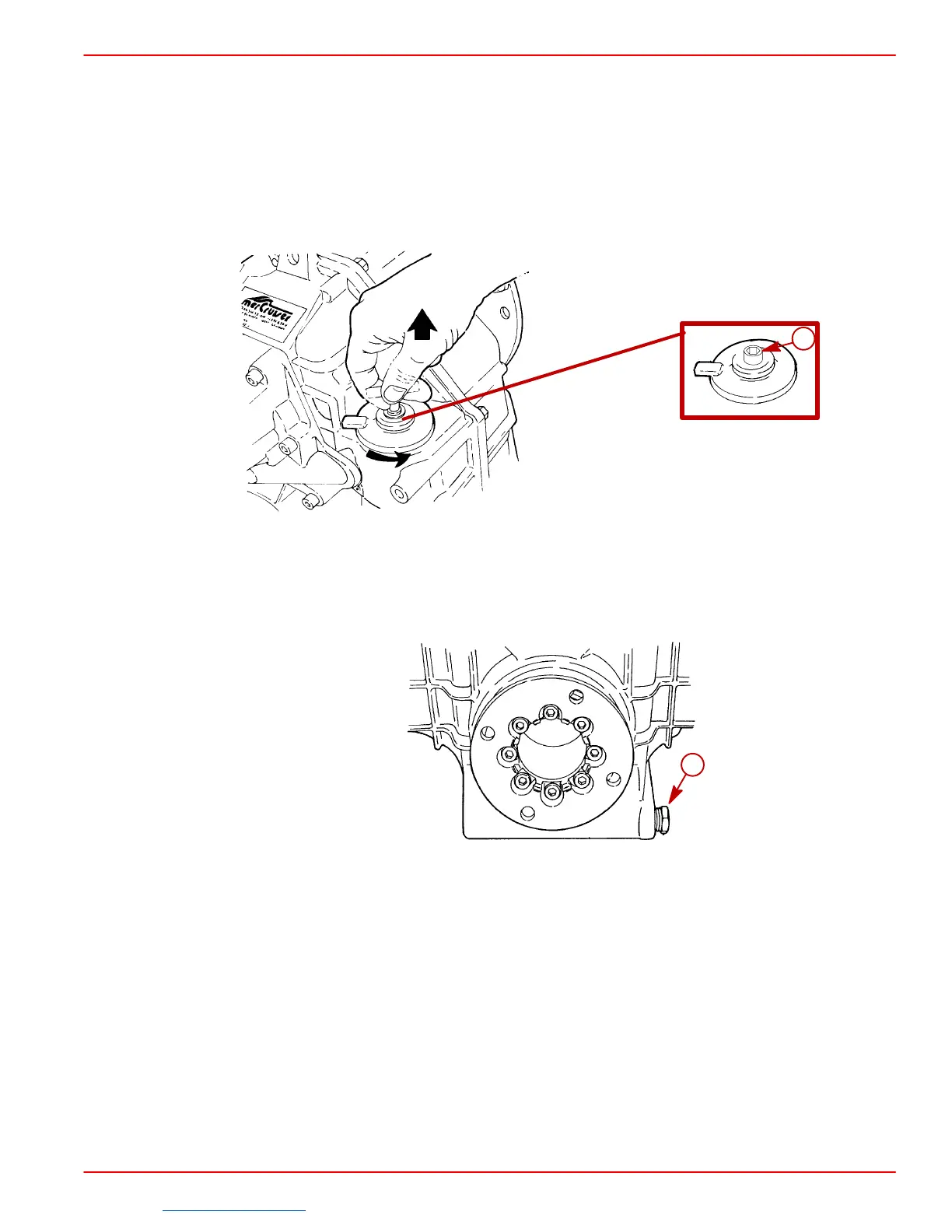

27666
a
a-Set Screw (Later Models)
3. Remove drain plug from transmission and allow fluid to drain. Reinstall drain plug and
tighten securely.
73013
a
a-Drain Plug
