STARTING SYSTEM SERVICE MANUAL NUMBER 23

Page 4A-2 90-861326--1 MARCH 1999

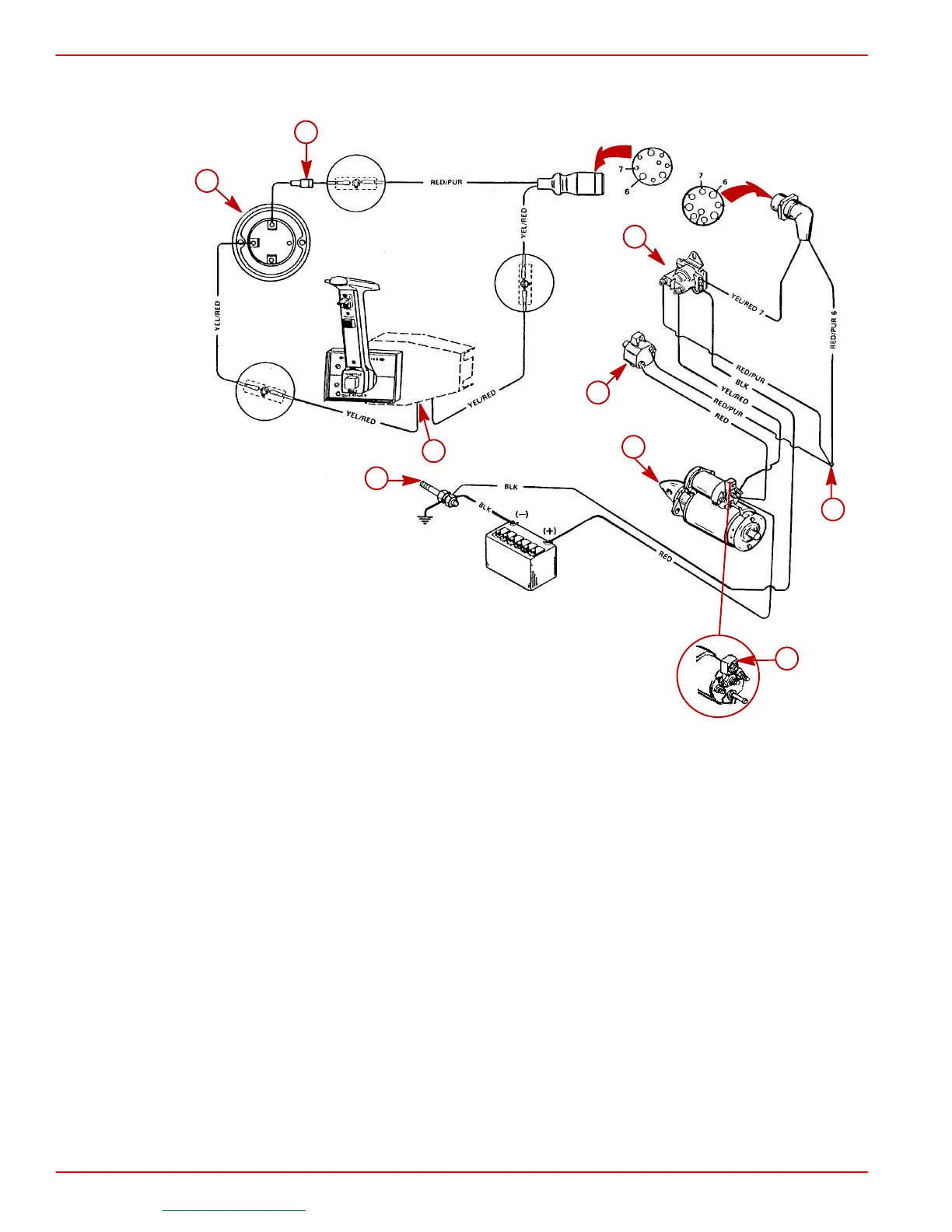

Starting System Components (Typical for All Starters)

72930

a-Ignition Switch

b-20 Amp Fuse

c-Starter Slave Solenoid

d-Circuit Breaker

e-Starter Motor

f-Wire Junction

g-Neutral Safety Switch

h-90 Amp. Fuse

i-Engine Ground (–)
