MULTI-PORT FUEL INJECTION DISASSEMBLY AND REASSEMBLY SERVICE MANUAL NUMBER 23

Page 5C-4 90-861326--1 MARCH 1999

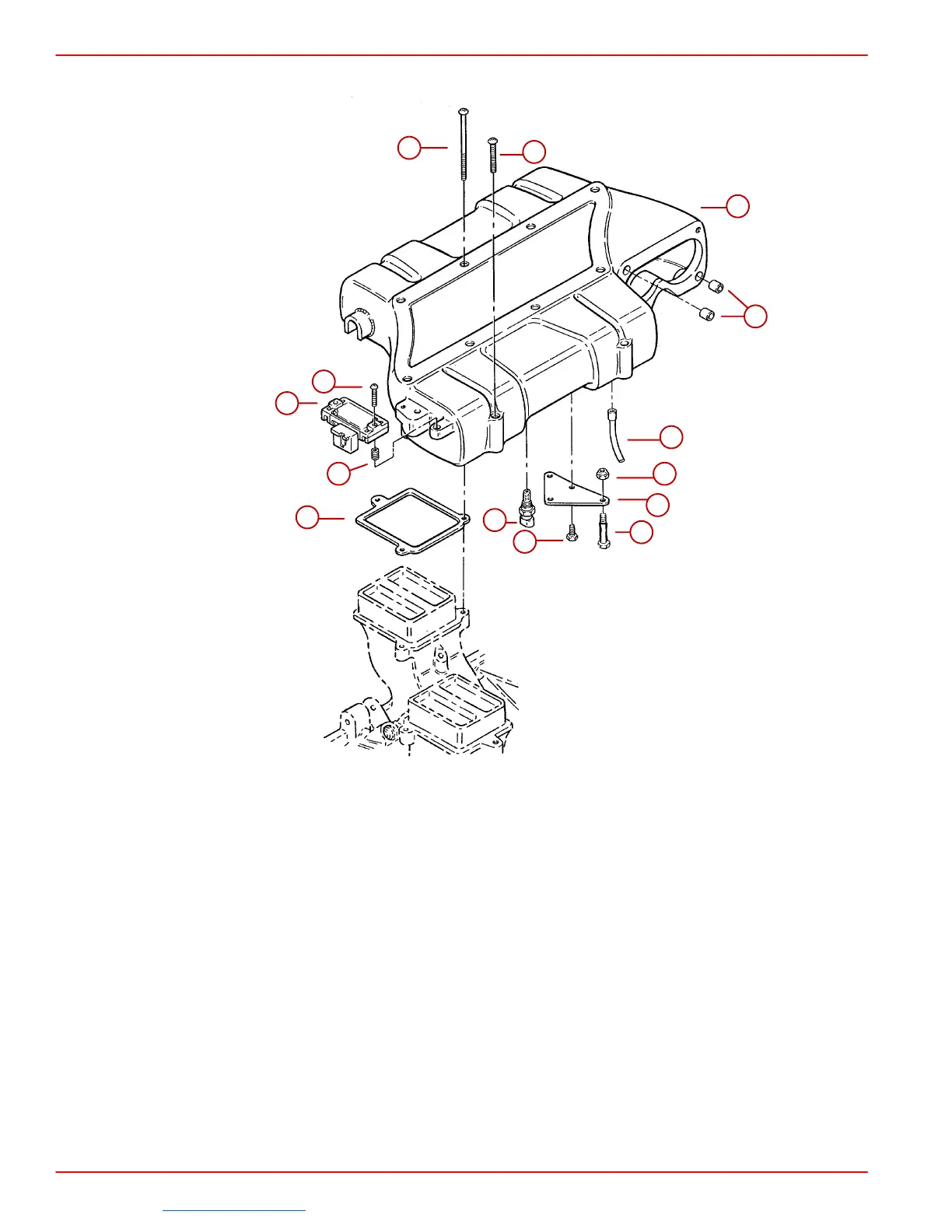

454/502 Mag MPI and 8.2L MPI Plenum

72802

1-Screw

2-Screw

3-Plenum

4-Sleeve

5-Drain Line To Intake Manifold

6-Nut

7-Bracket

8-Stud

9-Screw

10 - Intake Air Temperature (IAT) Sensor

11 - Gasket

12 - Seal

13 - Manifold Absolute Pressure (MAP) Sensor

14 - Screw
