CHARGING SYSTEM

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 4C-29

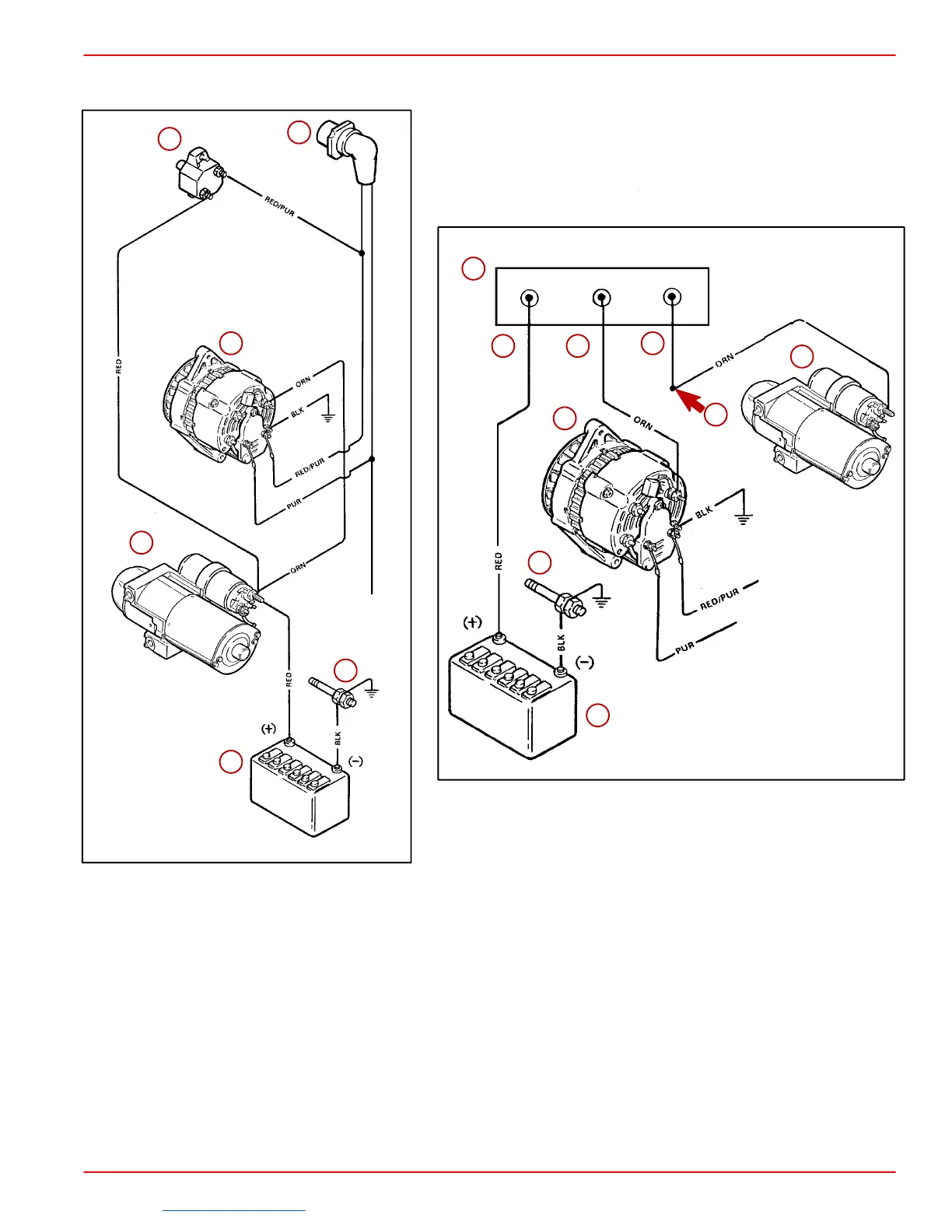

Battery Isolator Diagram

72934

BB21

a-Circuit Breaker

b-Harness Connector

c-Alternator

d-Starter

e-Cranking Battery

f-Ground Stud

g-Auxiliary Battery

h-Isolator

1-Disconnect Orange Wire From Alternator Battery Terminal. Splice Sufficient

Gauge Wire To The Orange Wire And Connect As Shown.

2-8 Gauge Minimum
