STARTING SYSTEM SERVICE MANUAL NUMBER 23

Page 4A-8 90-861326--1 MARCH 1999

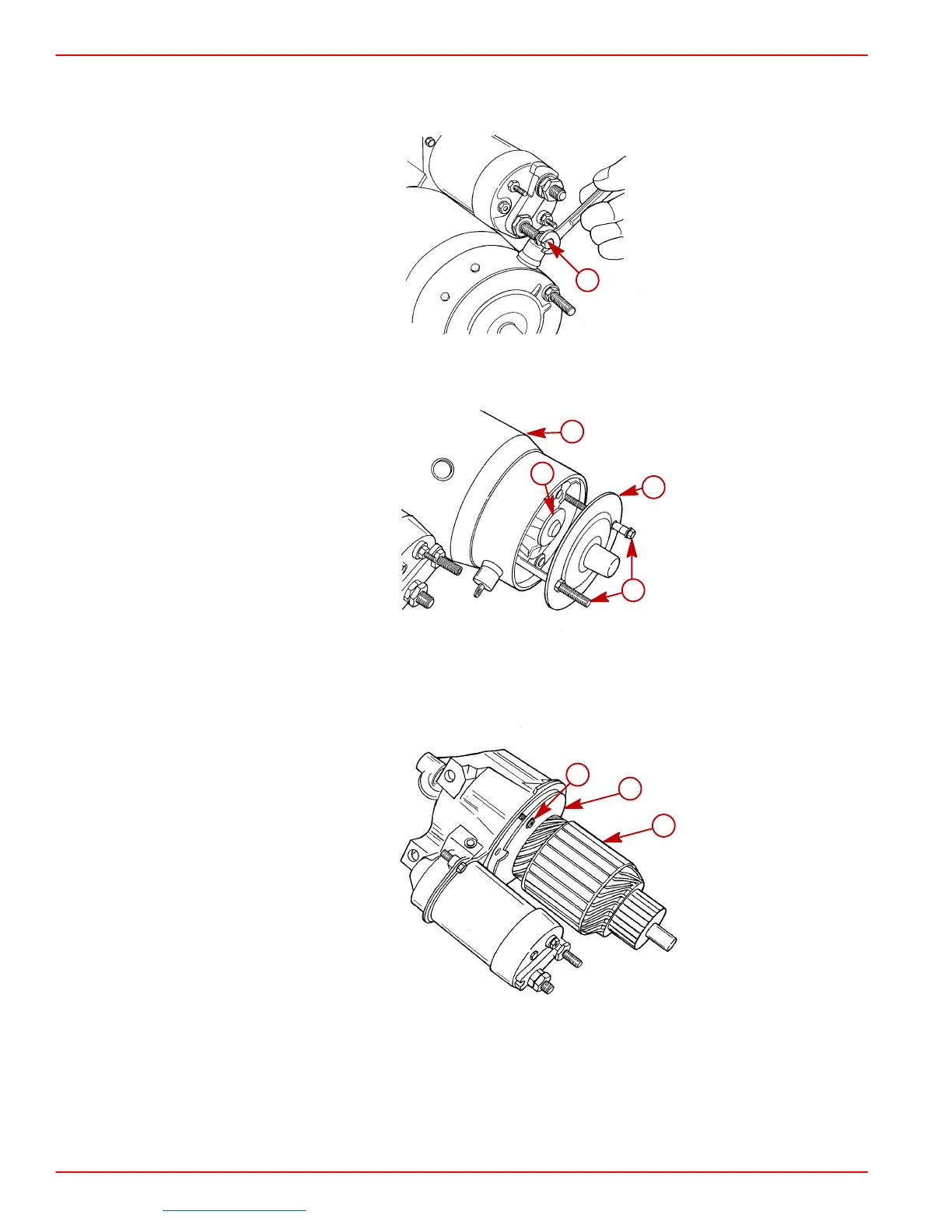

Starter Motor Disassembly

1. Remove screw from field coil connector.

72631

a-Connector Screw

2. Remove end frame screw/studs, end frame, washer and field frame.

72633

a-Screw/Studs

b-End Frame

c-Washer

d-Field Frame

3. Remove screws, center bearing plate and armature.

72634

a-Screws

b-Bearing Plate

c-Armature

4. Slide thrust collar off armature shaft.

5. Drive retainer ring toward armature.

6. Remove snap ring, retainer and clutch assembly.
