CHARGING SYSTEM SERVICE MANUAL NUMBER 23

Page 4C-28 90-861326--1 MARCH 1999

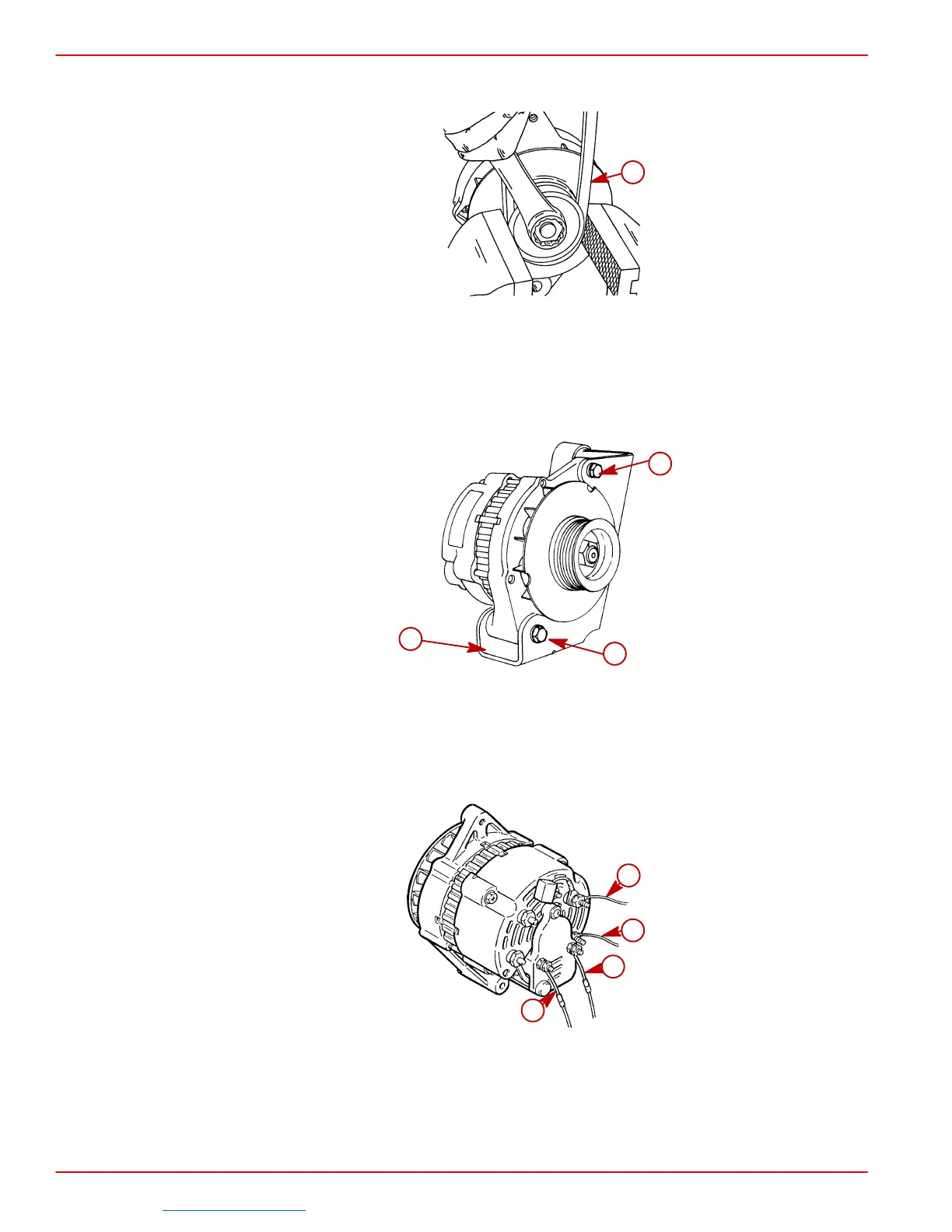

14. Install pulley (using an old belt or protective jaws to protect pulley) and torque pulley nut

to 42 lb-ft (57 Nm).

72828

a-Old Belt to Protect Pulley

Installation

1. Position alternator in mounting bracket and install mounting bolts. Torque to 35 lb-ft

(48 Nm).

75713

a-Bracket

b-Bolts

2. Position alternator drive belt on pulleys and adjust tension as explained under “Drive

Belt Tension Adjustment,” preceding.

3. Reconnect wiring harness to alternator.

72838

a-Excitation Lead -(PURPLE)

b-Sensing Lead - (RED / PURPLE)

c-Ground Lead - (BLACK)

d-Output Lead - (ORANGE)

4. Connect negative battery cable to battery.
