STARTING SYSTEM SERVICE MANUAL NUMBER 23
Page 4A-38 90-861326--1 MARCH 1999

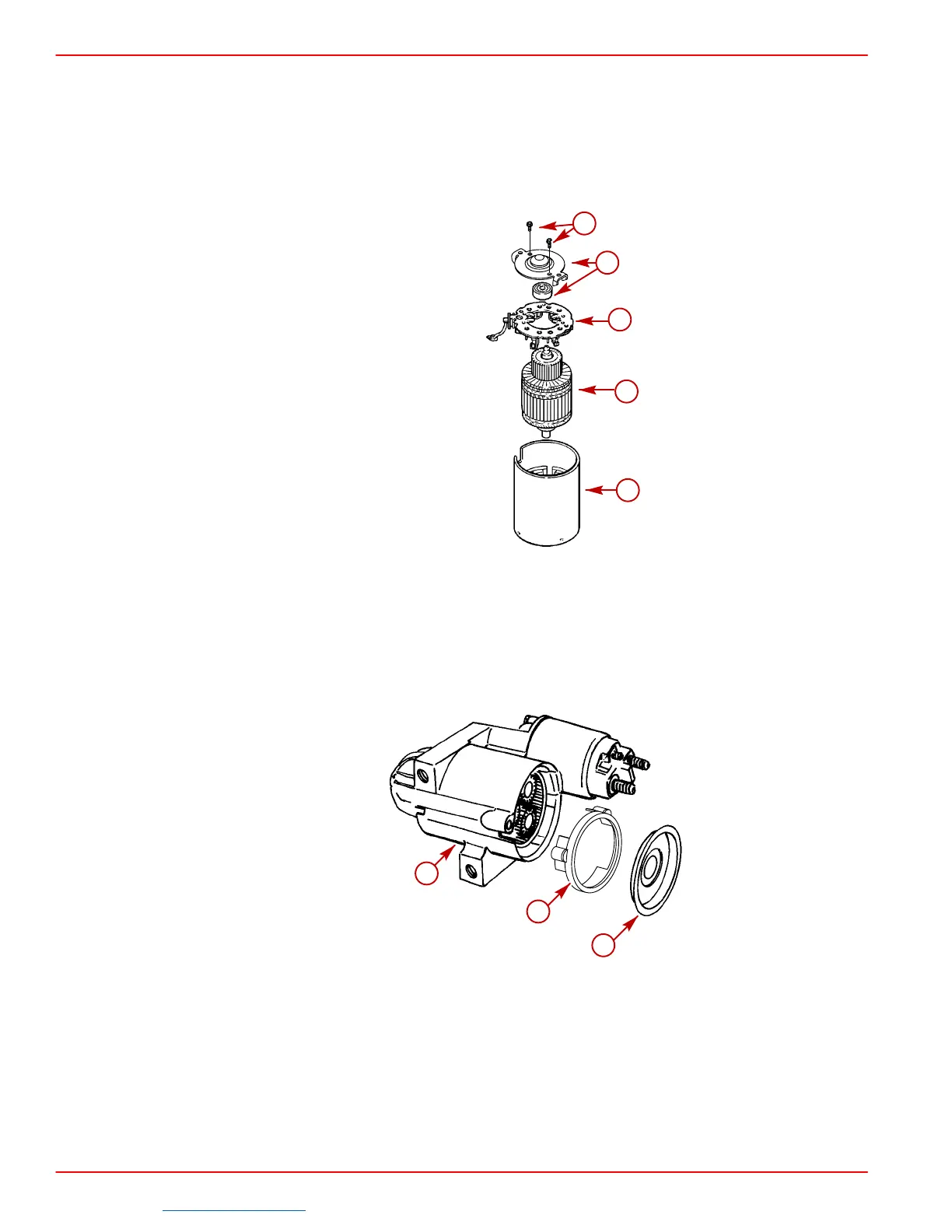

2. Separate end frame from field frame.
3. Remove brush holder from end frame.
4. Remove armature and field frame from drive housing.
5. Pull armature out of field frame.
NOTE: Permanent magnets inside field frame will be holding armature in place.
74270
b
a
c
d
e
a-End Frame and Bearing
b-Screws (2)
c-Brush Holder
d-Armature
e-Field Frame
6. Remove shield and washer from drive housing.
74038
c
b
a
a-Shield
b-Washer
c-Drive Housing
