9. Install and torque screw and washer through the mounting clip into the stringer.
Description
Nm lb-in. lb-ft
Screw, Mounting Clip 12.2 9
10. Install and torque hose clamps over hose and insert barbs into hose.
78289
b
a

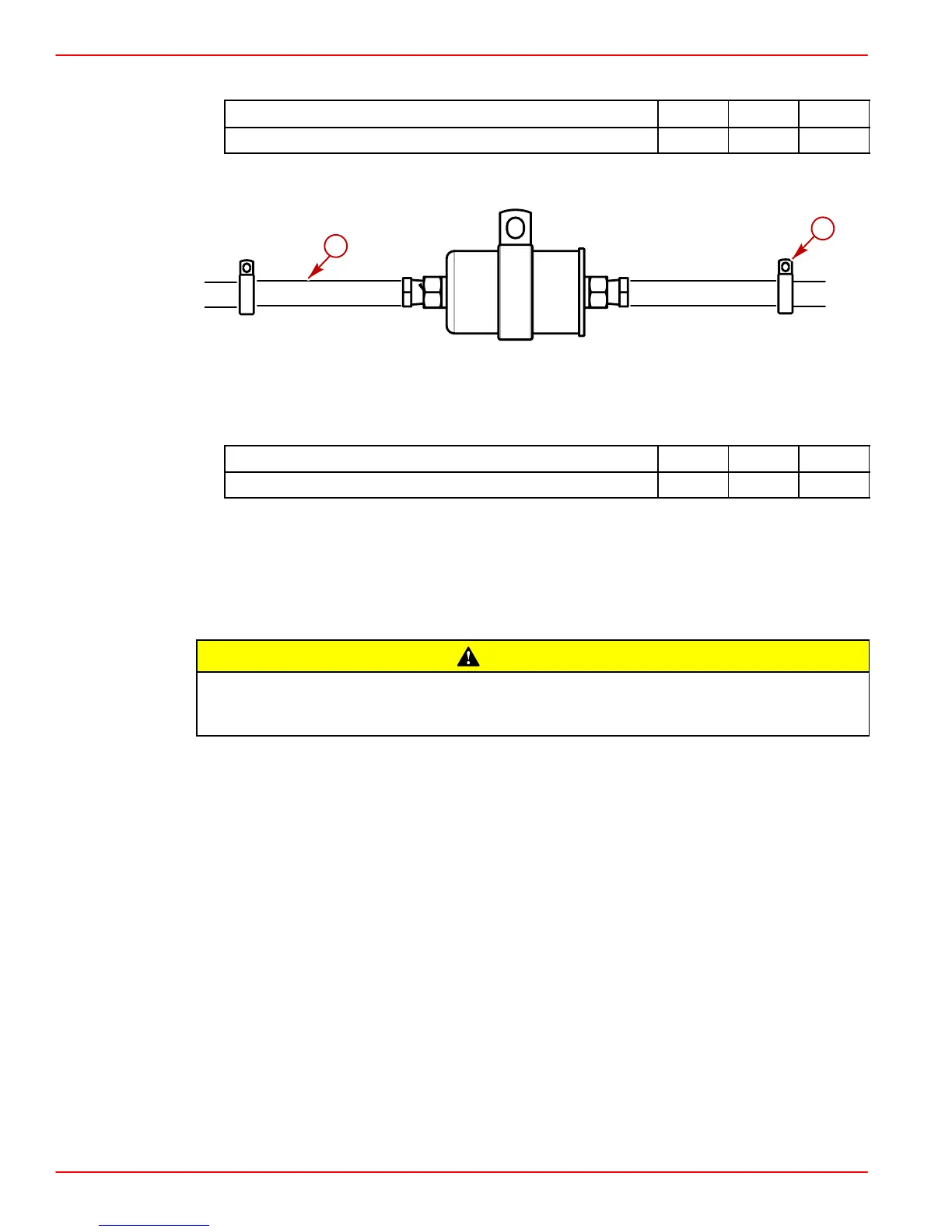

a-Fuel Line Stringer Clips
b-Fuel Line
Description
Nm lb-in. lb-ft
Hose Clamps 3.4-6.8 30-60
11. Inspect the fuel line stringer clips to ensure that the recommended length between clips
has not been exceeded. The maximum allowable length is 45.7 mm (18 in.).
12. Pressurize the fuel system and check for leaks. Relieve pressure and then check for
leaks again.
SPECIAL INFORMATION ABOUT ELECTRIC FUEL PUMPS
CAUTION
The electric fuel pump and factory installed water separating fuel filter have been
carefully designed to function properly together. Do not install additional fuel filters
and/or water separating fuel filters between fuel tank and engine.
The installation of additional filters may cause:
• Fuel Vapor Locking
• Difficult Warm-Starting
• Piston Detonation Due to Lean Fuel Mixture
• Poor Driveability
