Mercury MX 6.2 MPI

INSTALLATION MANUAL
Page 60 of 77 90-864198020
Identification

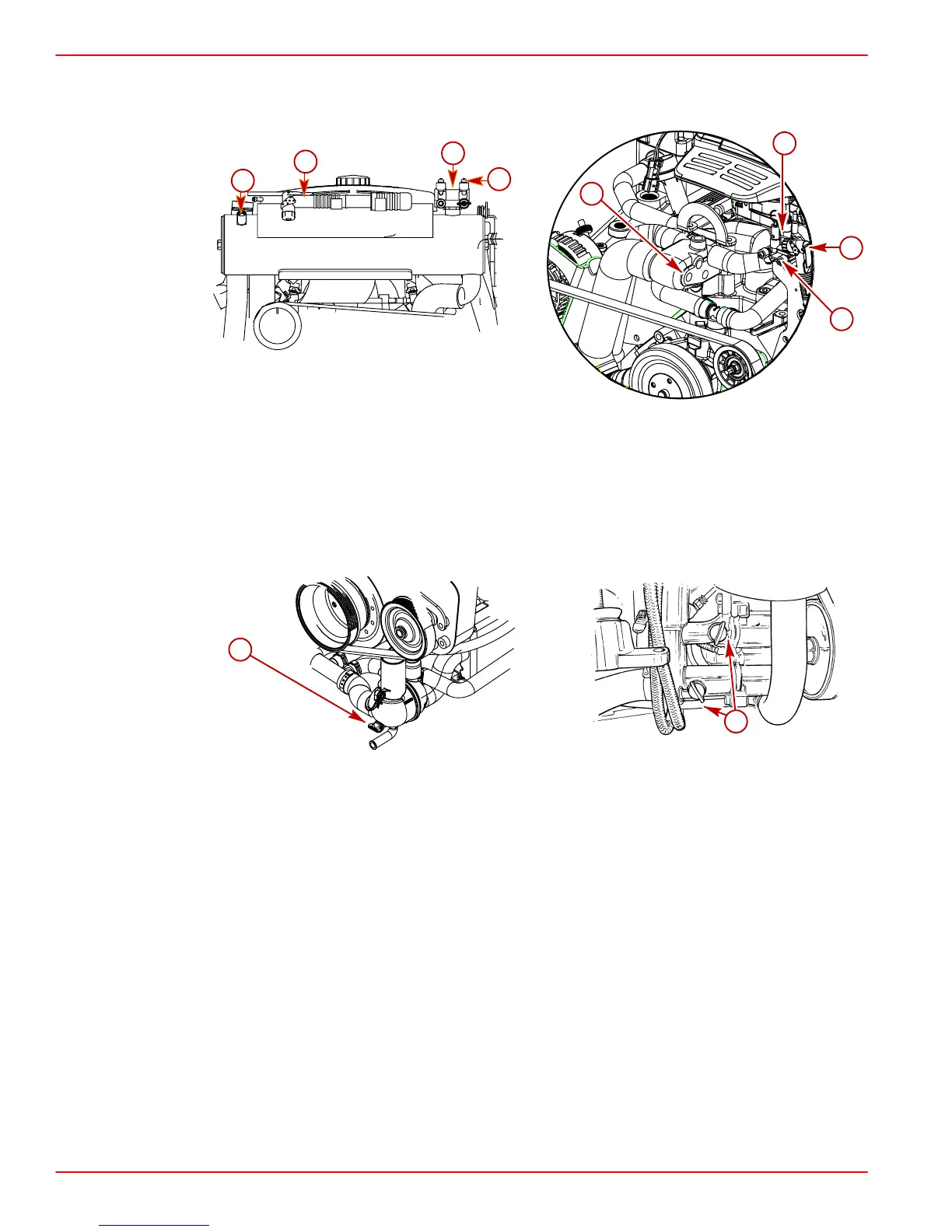

AIR ACTUATED SINGLE POINT DRAIN SYSTEM
b
a
d
c
77955
77955
a
b
c
d
Closed Cooled Models Seawater Cooled Models
a-Blue Drain Plug Location
b-Blue Air Pump
c-Air Manifold
d-Green Indicators
3 POINT MANUAL DRAIN SYSTEM
77908
77917
a
a
a-Blue Drain Plug
